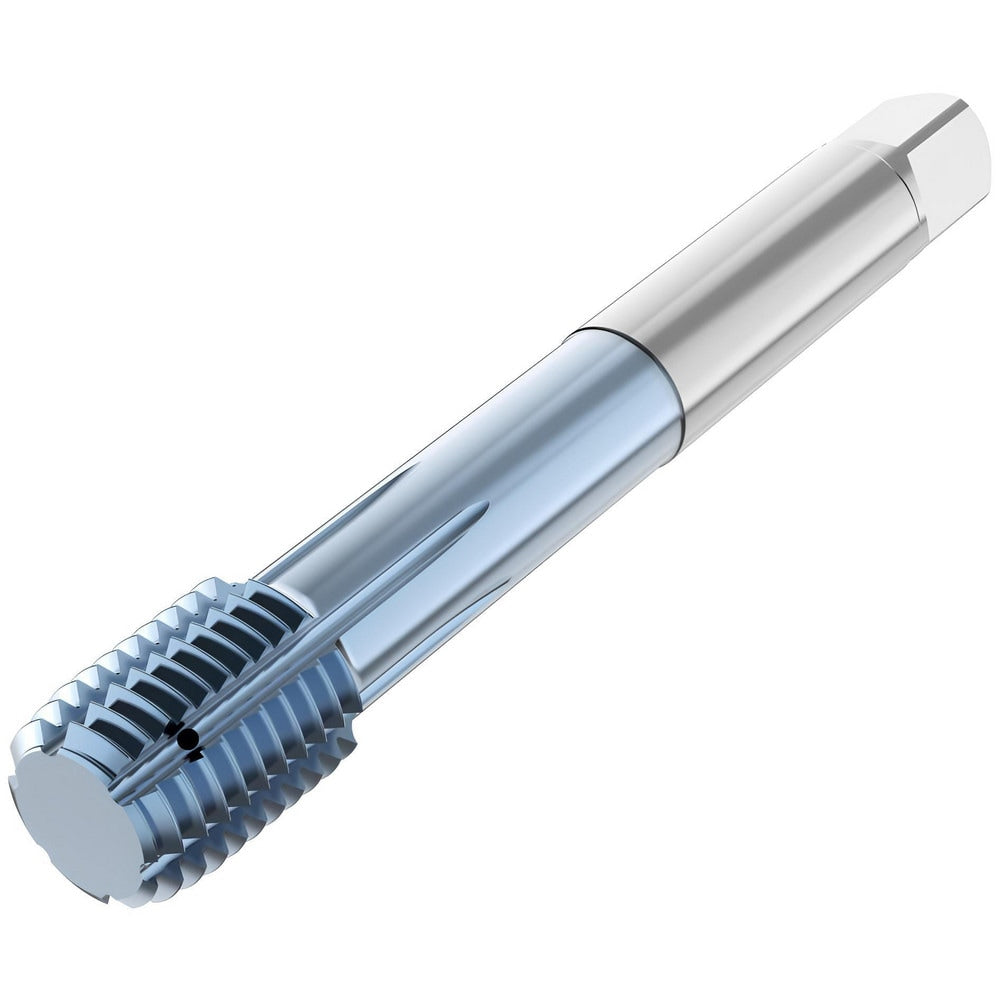

Thread Forming Tap: M14x1.5 Metric, 6HX Class of Fit, Modified Bottoming Chamfer, High-Speed Steel-E-PM, TiCN Finish
Item #: 82806282
Brand: Seco
Model #: 10208937
Product Specifications
| Thread Size (mm) | M14x1.5 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-3P |
| Material | High-Speed Steel-E-PM |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Overall Length (mm) | 100.00 |
| Thread Direction | Right Hand |
| Thread Length (mm) | 15.00 |
| Shank Diameter (mm) | 11.0000 |
| Material Application | Threading |
| Application | Threading |
| Series | T33B |
| Tapping Depth (mm) | 81.00 |
| Square Size (mm) | 9.00 |
| Threads per Inch | 17 |
| Material Grade | High-Speed Steel-E-PM |
| Oil Grooves | 6 |
| Material Application Code | P; M; N |
| Trade Name | Threadmaster |
| Number Of Flutes | 5 |
| UNSPSC Code | 23241600 |
| Country of Origin | Poland |
