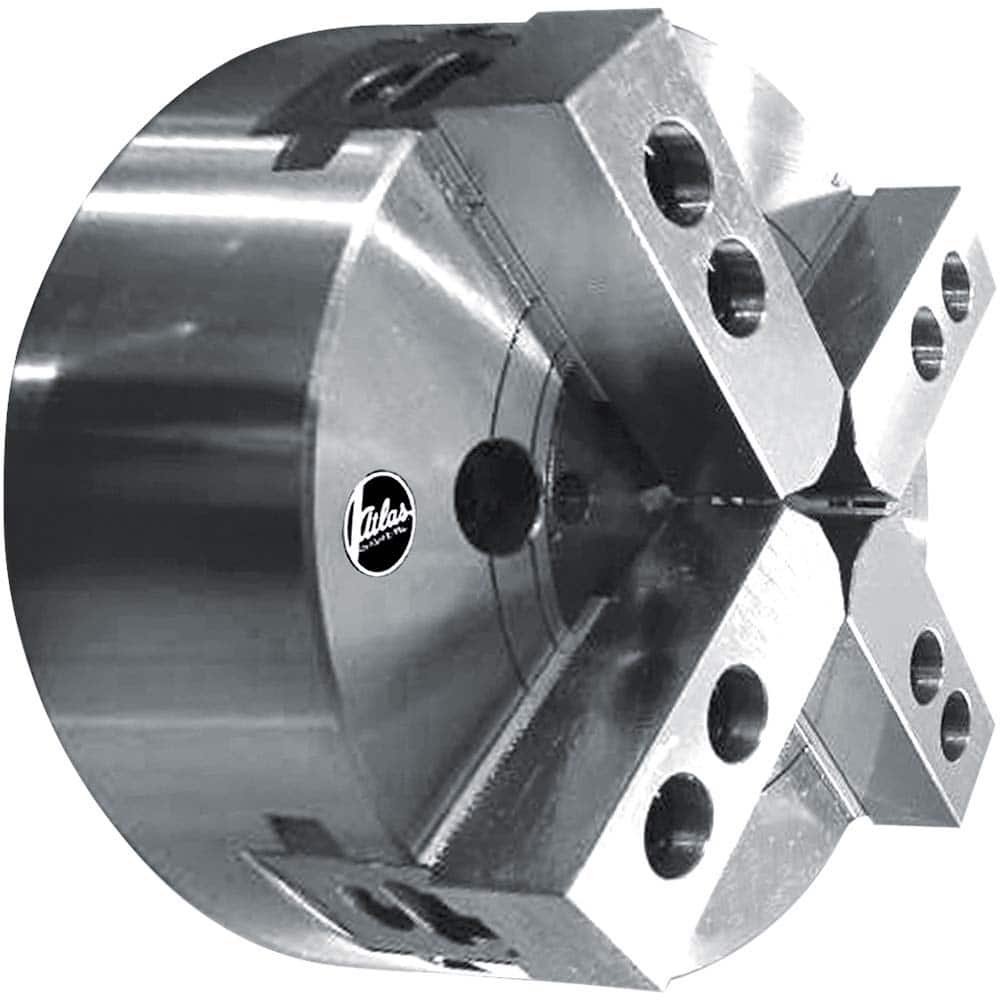

Atlas Workholding - 4 Jaw 10" Diam A-6 Lathe Chuck
Item #: 81694309
Brand: Atlas Workholding
Model #: 4ATL10-A6
Product Specifications
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 4 |
| Mount | A-6 |
| Through-Hole Diameter (Decimal Inch) | 3.0300 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.9450 |
| Maximum Jaw Capacity (Decimal Inch) | 10.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.3460 |
| Piston Stroke Length (Decimal Inch) | 0.7480 |
| Maximum Drawbar Pulling Force (lbf) | 9667.00 |
| Maximum Static Gripping Force (lbf) | 24932.00 |
| Maximum RPM | 4200 |
| Body Material | Steel |
