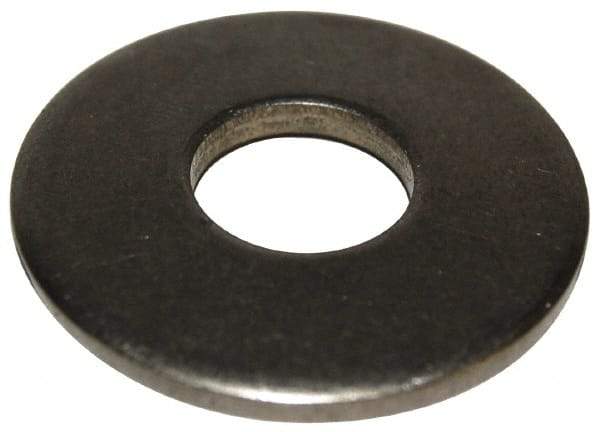

Gardner Spring - 2-1/4" Bolt, 2-5/16" ID, Grade 1095 Chrome Vanadium Steel, Belleville Disc Spring - 4-1/2" OD, 0.36" High, 1/4" Thick
Item #: 81433773
Brand: Gardner Spring
Model #: MG4500-250
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 2-1/4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 2.3120 |
| Material | Chrome Vanadium Steel |
| Material Grade | 1095 |
| Outside Diameter (Decimal Inch) | 4.5000 |
| Thickness (Decimal Inch) | 0.2500 |
| Overall Height (Decimal Inch) | 0.3600 |
| Deflection (Decimal Inch) | 0.0880 |
| Deflection to Flat (Decimal Inch) | 0.0880 |
| Minimum Inside Diameter (Decimal Inch) | 2.3120 |
| Maximum Outside Diameter (Decimal Inch) | 4.5000 |
| Load at Flat (Lb.) | 16552.40 |
| Load at Flat (N) | 73507.00 |
| Load at Deflection (Lb.) | 13549.60 |
| Minimum Load at Deflection (Lb.) | 11517.00 |
| Minimum Load at Deflection (N) | 51230.00 |
| Maximum Load at Deflection (Lb.) | 15582.00 |
| Maximum Load at Deflection (N) | 69312.00 |
