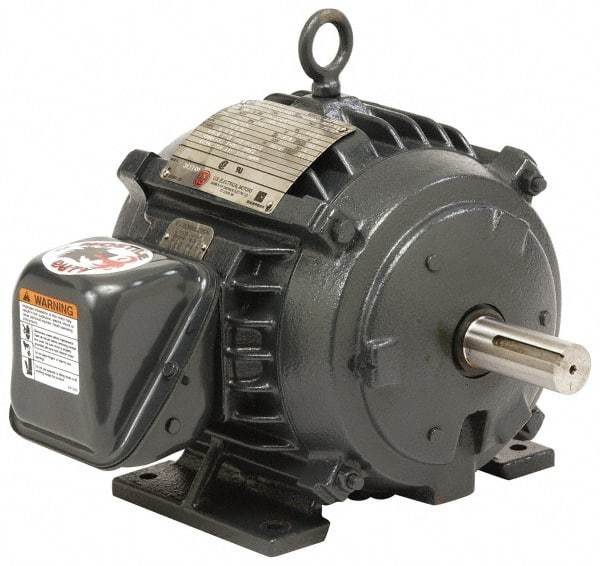

US Motors - 50 hp, TEFC Enclosure, No Thermal Protection, 1,785 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 364 Frame, Rigid Mount, 2 Speed, Ball Bearings, 47 Full Load Amps, F Class Insulation, Reversible
Item #: 81424335
Brand: US Motors
Model #: HVW50PL9G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 50 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1785 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 364 |
| Mount Type | Rigid |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 47 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 29.3800 |
| Full Load Efficiency Rating | 93.6 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
