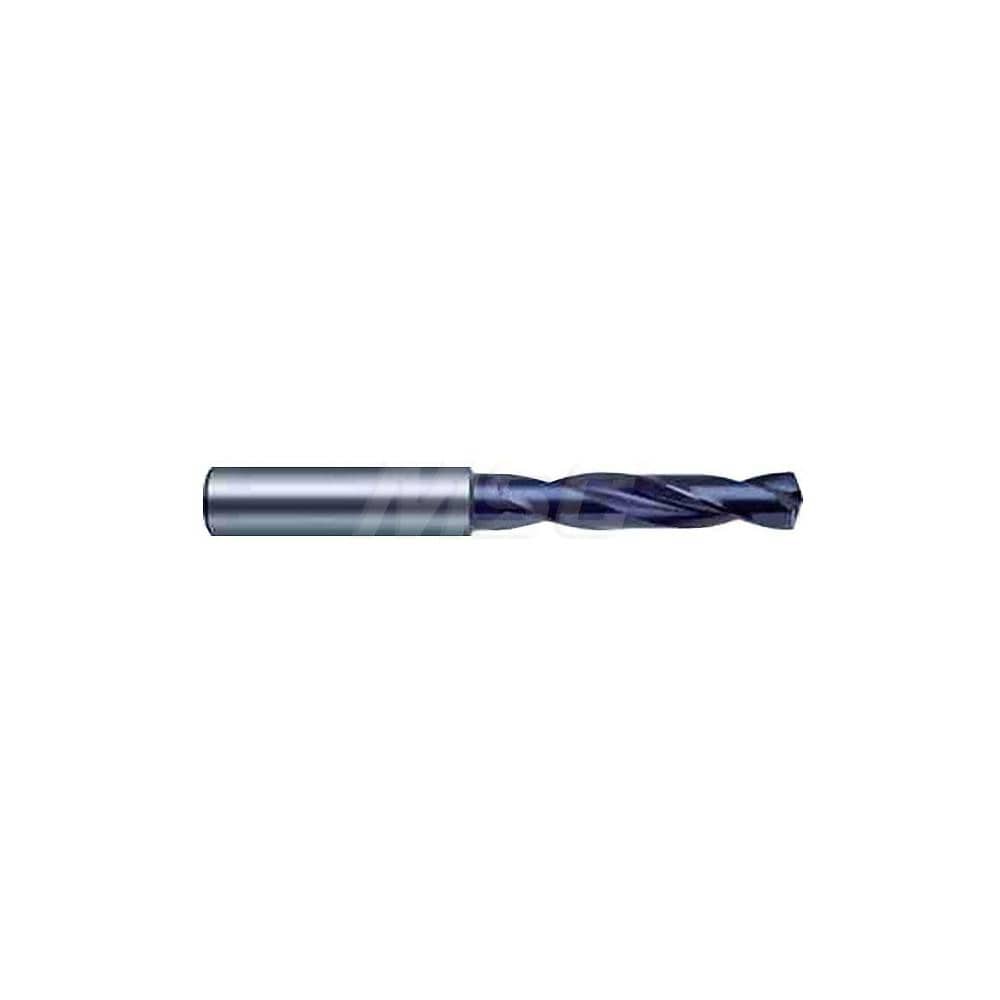

Screw Machine Length Drill Bit: 0.4882" Dia, 140 deg Point, Solid Carbide
Item #: 48556567
Brand: Guhring
Model #: 9055100124000
Product Specifications
| Drill Bit Size (mm) | 12.40 |
| Drill Bit Size (Decimal Inch) | 0.4882 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | 5510 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | nano-FIREX |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.6300 |
| Maximum Drilling Depth (mm) | 41.40 |
| Shank Length (Decimal Inch) | 1.8504 |
| Shank Length (mm) | 47.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Standards | DIN 6537 K |
| Flute Length (mm) | 60.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | Submicron |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 12.40 |
| Drill Bit Size (Decimal Inch) | 0.4882 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | 5510 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | nano-FIREX |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.6300 |
| Maximum Drilling Depth (mm) | 41.40 |
| Shank Length (Decimal Inch) | 1.8504 |
| Shank Length (mm) | 47.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Standards | DIN 6537 K |
| Flute Length (mm) | 60.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | Submicron |
| UNSPSC Code | 23241635 |
| MSC Part # | 48556567 |
| Mfr Part # | 9055100124000 |
| Country of Origin Country of Origin is subject to change | Germany |
