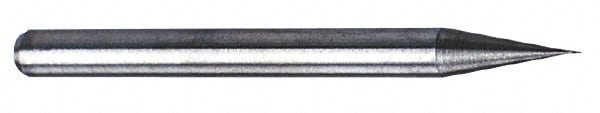

Square End Mill: 0.0450" Dia, 0.1350" LOC, 2 Flute, Solid Carbide
Item #: 01972454
Brand: Value Collection
Model #: 874-.045
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0450 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1350 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.0000/-0.0005 in |
| Series | VCCC-SC-2 |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.0450 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1350 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.0000/-0.0005 in |
| Series | VCCC-SC-2 |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 01972454 |
| Mfr Part # | 874-.045 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
