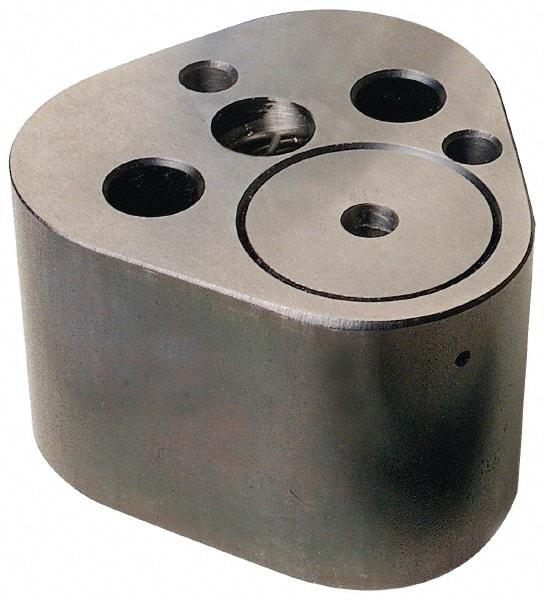

Dayton Lamina - 1/4" Shank Diam, 1-3/4" Base Length x 1.72" Base Width x 1-1/4" Base Height, 5/16-18 Thread, Alloy Steel Mold Punch Retainer - 1/8" Dowel Diam, 3/4" Length Between Dowel & Screw, 1-1/2" Thread Length, Ball Lock, Light Duty (LRT) Series
Item #: 80902000
Brand: Dayton Lamina
Model #: LRT25
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Base Length (Inch) | 1-3/4 |
| Base Length (Decimal Inch) | 1.7500 |
| Base Width (Decimal Inch) | 1.7200 |
| Thread Size | 5/16-18 |
| Thread Length (Inch) | 1-1/2 |
| Base Height (Decimal Inch) | 1.2500 |
| Locking Type | Ball Lock |
| Dowel Diameter (Decimal Inch) | 0.1250 |
| Dowel Diameter (Inch) | 1/8 |
| Length Between Dowel & Screw Hole (Inch) | 3/4 |
| Length Between Dowel & Screw Hole (Decimal Inch) | 0.7500 |
| Width Between Dowel & Screw Hole (Inch) | 7/8 |
| Width Between Dowel & Screw Hole (Decimal Inch) | 0.8750 |
| Length Between Punch Shank & Dowel (Decimal Inch) | 1.0600 |
| Material | Alloy Steel |
| Includes | (2) Dowels; (2) Screws; Ball; Ball Release Set Screw; Spring |
| Series | Light Duty (LRT) |
