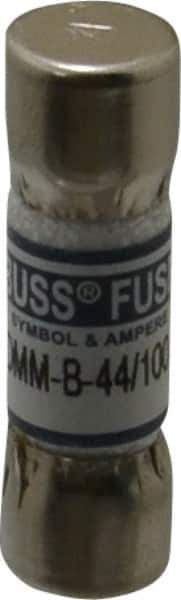

Cooper Bussmann - 1,000 VAC/VDC, 0.44 Amp, Fast-Acting General Purpose Fuse - 34.9mm OAL, 10mm Diam
Item #: 80687270
Brand: Cooper Bussmann
Model #: DMM-B-44/100
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Amperage (mA) | 440 |
| Amperage | 0.44 |
| Voltage | 1000 VAC/VDC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 34.90 |
| Overall Length (Decimal Inch) | 1.3750 |
| Overall Diameter (mm) | 10.00 |
| Overall Diameter (Decimal Inch) | 0.4060 |
| Material | Melamine |
| Interrupting Rating (A) | 20000.00 |
| Maximum Operating Temperature (F) | 82.40 |
| Standards Met | UL Recognized File E19180 |
