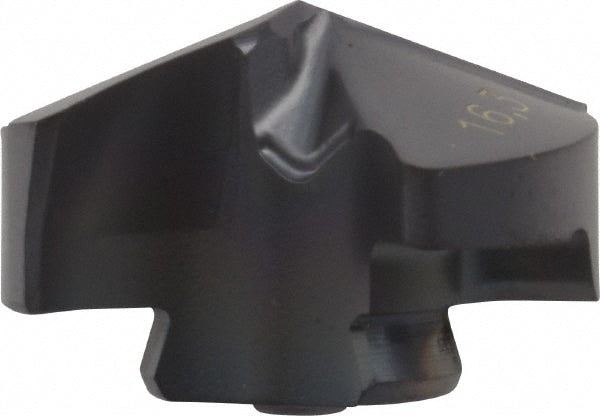

Replaceable Drill Tips: IDI0642-SG IC908, 0.6420" Dia, 16.31 mm Dia, 140 deg Point, IC908
Item #: 56217300
Brand: Iscar
Model #: 5505075
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6420 |
| Cutting Diameter (mm) | 16.31 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | IDI-SG |
| Coating Process | PVD |
| Insert Geometry | SG |
| Insert Seat Size | 16 |
| Functional Length (Decimal Inch) | 0.1942 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.311 |
| Height (mm) | 8.00 |
| Overall Length/Projection (Decimal Inch) | 0.3112 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | IDI 163-SG |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | IDI-SG |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Hole Making |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Cutting Diameter (Decimal Inch) | 0.6420 |
| Cutting Diameter (mm) | 16.31 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | IDI-SG |
| Coating Process | PVD |
| Insert Geometry | SG |
| Insert Seat Size | 16 |
| Functional Length (Decimal Inch) | 0.1942 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.311 |
| Height (mm) | 8.00 |
| Overall Length/Projection (Decimal Inch) | 0.3112 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | IDI 163-SG |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | IDI-SG |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Hole Making |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| MSC Part # | 56217300 |
| Mfr Part # | 5505075 |
| Country of Origin Country of Origin is subject to change | Israel |
