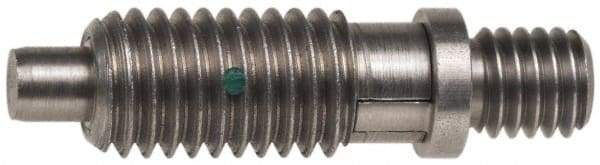

Gibraltar - 5/8-11, 1" Thread Length, 0.311" Max Plunger Diam, 5 Lb Init to 10 Lb Final End Force, Locking Knob Handle Plunger - Knobless Threaded Stud, 1-5/16" Length Under Head/Shoulder, 5/16" Plunger Projection
Item #: 80380470
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 5/8-11 |
| Thread Length (Inch) | 1 |
| Thread Length (Decimal Inch) | 1.0000 |
| Plunger Type | Locking |
| Knob Style | Threaded Stud (without Knob) |
| Length Under Head/Shoulder (Inch) | 1-5/16 |
| Length Under Head/Shoulder (Decimal Inch) | 1.3125 |
| Plunger Projection (Inch) | 5/16 |
| Plunger Projection (Decimal Inch) | 0.3125 |
| Maximum Plunger Diameter (Decimal Inch) | 0.3110 |
| Initial End Force (Lb.) | 5.00 |
| Final End Force (Lb.) | 10.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 2.1860 |
| Head Height (Inch) | 7/16 |
| Stud Thread Size | 1/2-13 |
| Material | Stainless Steel |
| Finish/Coating | Zinc Plated |
| Plunger Diameter Tolerance (Decimal Inch) | +0.0010 |
