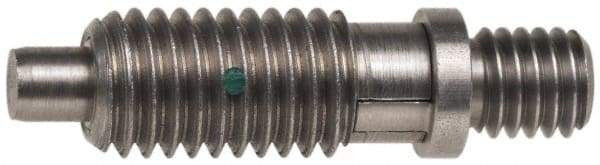

Gibraltar - 1/2-13, 7/8" Thread Length, 1/4" Max Plunger Diam, 1.25 Lb Init to 5 Lb Final End Force, Locking Knob Handle Plunger - Knobless Threaded Stud, 1-1/8" Length Under Head/Shoulder, 1/4" Plunger Projection
Item #: 80380421
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Inch) | 7/8 |
| Thread Length (Decimal Inch) | 0.8750 |
| Plunger Type | Locking |
| Knob Style | Threaded Stud (without Knob) |
| Length Under Head/Shoulder (Inch) | 1-1/8 |
| Length Under Head/Shoulder (Decimal Inch) | 1.1250 |
| Plunger Projection (Inch) | 1/4 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2490 |
| Initial End Force (Lb.) | 1.25 |
| Final End Force (Lb.) | 5.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.9370 |
| Head Height (Inch) | 7/16 |
| Stud Thread Size | 3/8-16 |
| Material | Steel |
| Finish/Coating | Zinc Plated |
| Plunger Diameter Tolerance (Decimal Inch) | +0.0010 |
