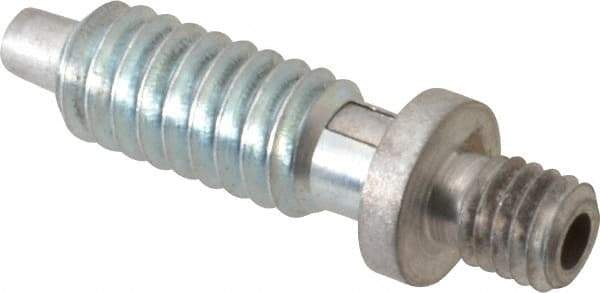

Gibraltar - 1/4-20, 1/2" Thread Length, 1/8" Max Plunger Diam, 1 Lb Init to 5 Lb Final End Force, Locking Knob Handle Plunger - Knobless Threaded Stud, 5/8" Length Under Head/Shoulder, 1/8" Plunger Projection
Item #: 80380363
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Thread Length (Inch) | 1/2 |
| Thread Length (Decimal Inch) | 0.5000 |
| Plunger Type | Locking |
| Knob Style | Threaded Stud (without Knob) |
| Length Under Head/Shoulder (Inch) | 5/8 |
| Length Under Head/Shoulder (Decimal Inch) | 0.6250 |
| Plunger Projection (Inch) | 1/8 |
| Plunger Projection (Decimal Inch) | 0.1250 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1240 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 5.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.0620 |
| Head Height (Inch) | 15/64 |
| Stud Thread Size | 10-32 |
| Material | Steel |
| Finish/Coating | Zinc Plated |
| Plunger Diameter Tolerance (Decimal Inch) | +0.0010 |
