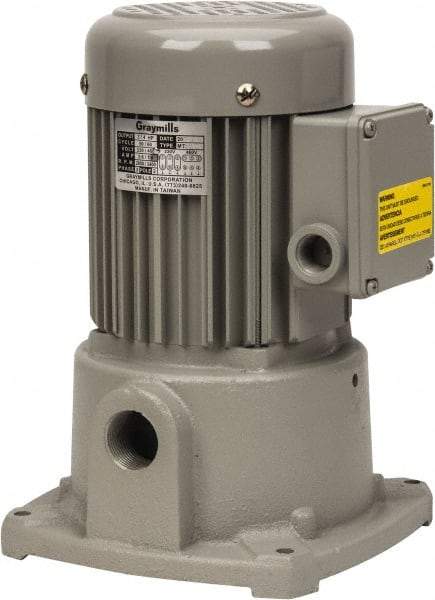

Graymills - 230/460 Volt, 3/4 hp, 3 Phase, 3,450 RPM, Cast Iron Suction Machine Tool & Recirculating Pump - 43 GPM, 1" Inlet, 52 psi, 8" Long x 8" Mounting Flange Width, 11-13/16" Overall Height, Metric Thread, Aluminum Impeller
Item #: 80030307
Brand: Graymills
Model #: IMS75-F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pump Type | Suction |
| Horsepower | 3/4 |
| Phase | 3 |
| Voltage | 230/460 |
| GPM | 43.00 |
| Housing Material | Cast Iron |
| Shaft Material | Carbon steel |
| Head Pressure | 52.0 |
| Thread Type | Metric |
| Inlet Size (Inch) | 1 |
| Overall Height (Inch) | 11-13/16 |
| Mounting Flange Length (Inch) | 8 |
| Mounting Flange Width (Inch) | 8 |
| RPM | 3450.000 |
| Impeller Material | Aluminum |
