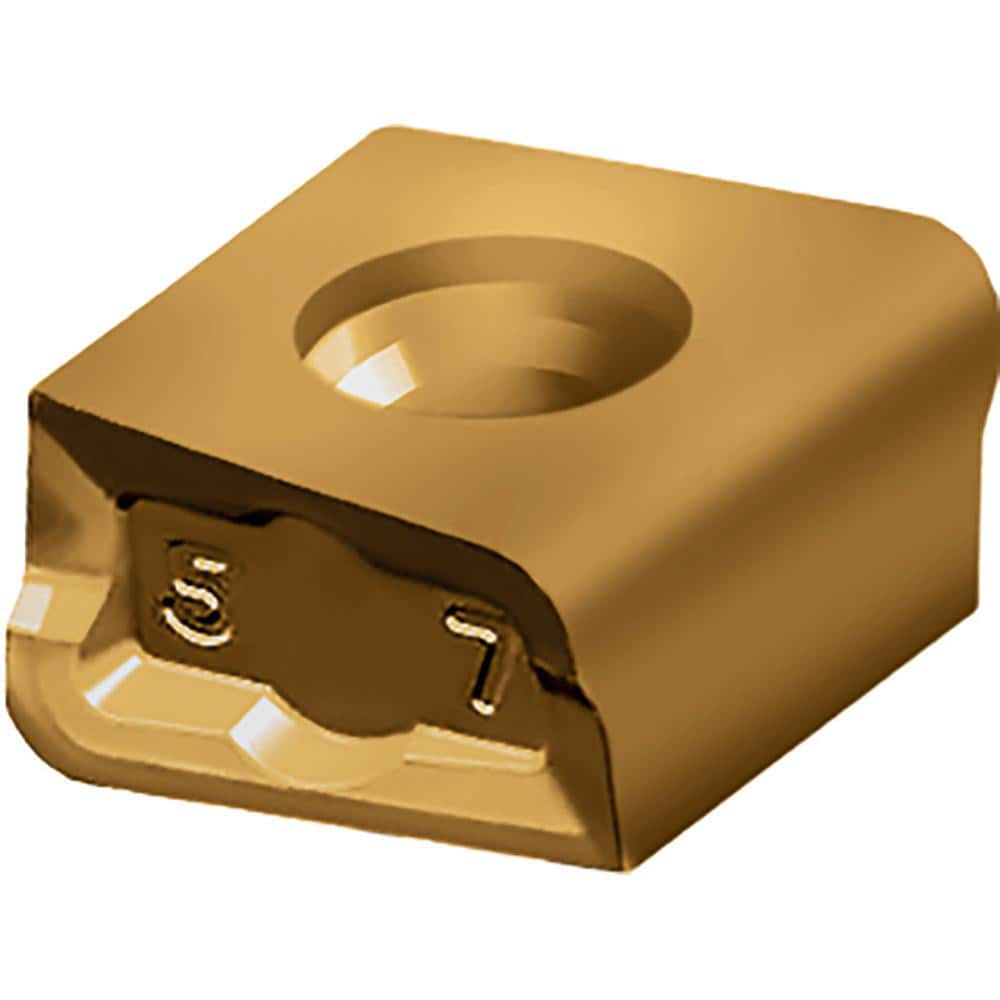

Milling Insert: WSP45G, Solid Carbide N/A Finish,
Item #: 79959573
Brand: Walter
Model #: 8112863
Product Specifications
| Insert Style | LNHU |
| Insert Size Code | 080304 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | LNHU08 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Chip Breaker | F57T |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1380 |
