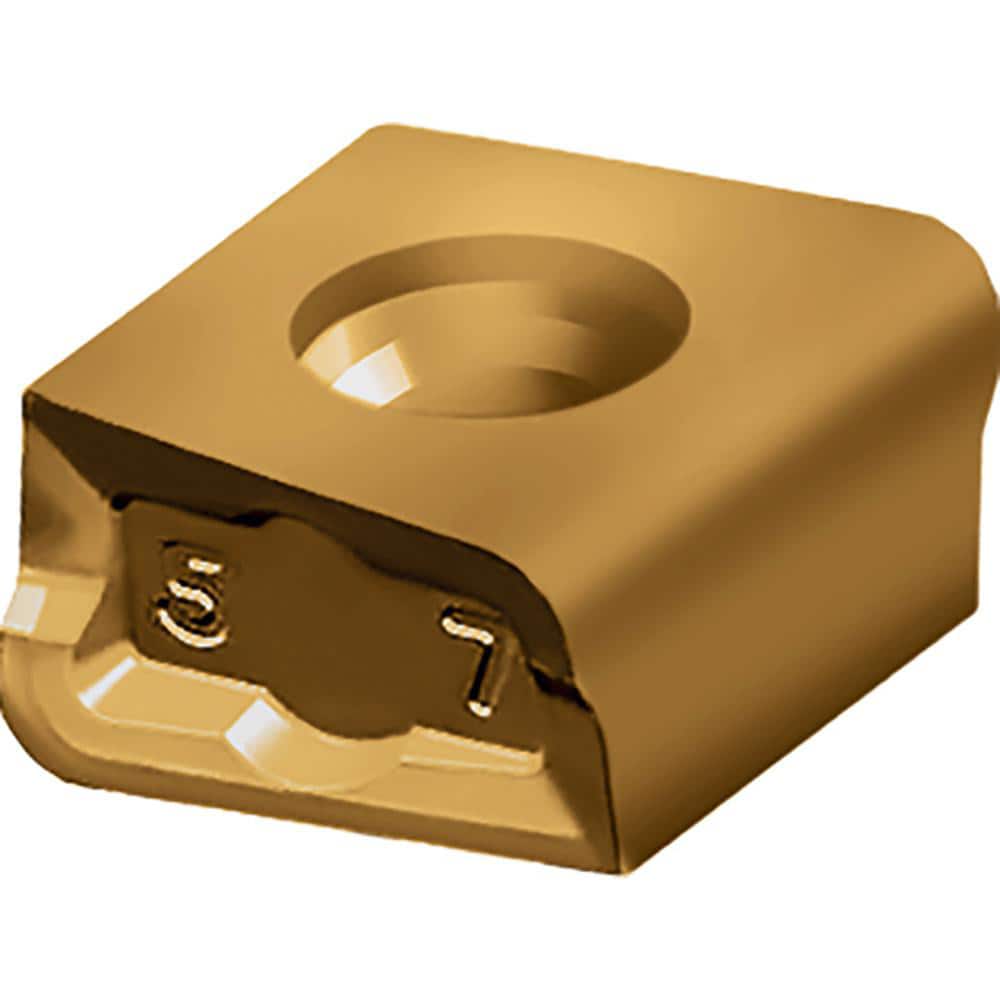

Milling Insert: WSP45G, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 79959565
Brand: Walter
Model #: 8112879
Product Specifications
| Insert Style | LNMU |
| Insert Size Code | 160812 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | LNMU16 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Chip Breaker | F57T |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3150 |
