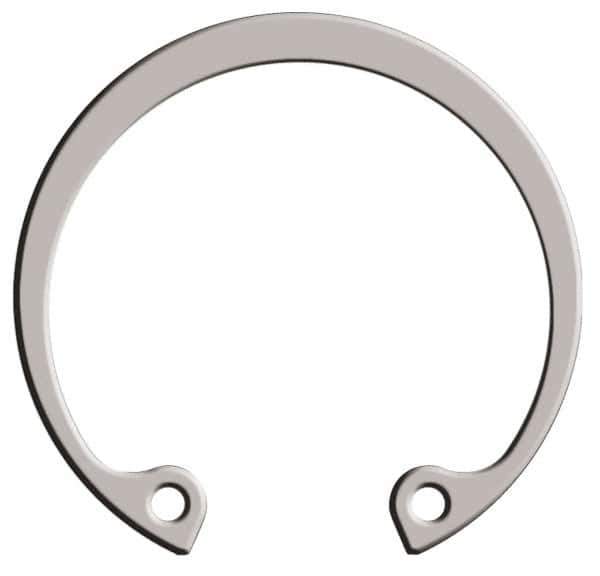

Rotor Clip - 0.062" Thick, Passivated Finish, Stainless Steel Snap Internal Retaining Ring - 0.068" Groove Width, 0.05" Groove Depth, 1.725" Groove Diam, Grade 15-7 Grade 632
Item #: 79949228
Brand: Rotor Clip
Model #: HO-162SS MPS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-5/8 |
| Bore Diameter (Decimal Inch) | 1.6250 |
| Bore Diameter (mm) | 41.28 |
| Groove Diameter (Decimal Inch) | 1.7250 |
| Groove Diameter (mm) | 43.82 |
| Groove Width (Decimal Inch) | 0.0680 |
| Groove Width (mm) | 1.73 |
| Free Outside Diameter (Decimal Inch) | 1.8040 |
| Free Outside Diameter (mm) | 45.82 |
| Military Specification | MS 16625-4162 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness (mm) | 1.57 |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0500 |
| Groove Depth (mm) | 1.27 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.025 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 14413 (Ring Safety Factor); 6900 (Groove Safety Factor) |
| Hardness | Rockwell C 44-51 |
| Fastener Standard | AMS-5529; UNS S15700 |
