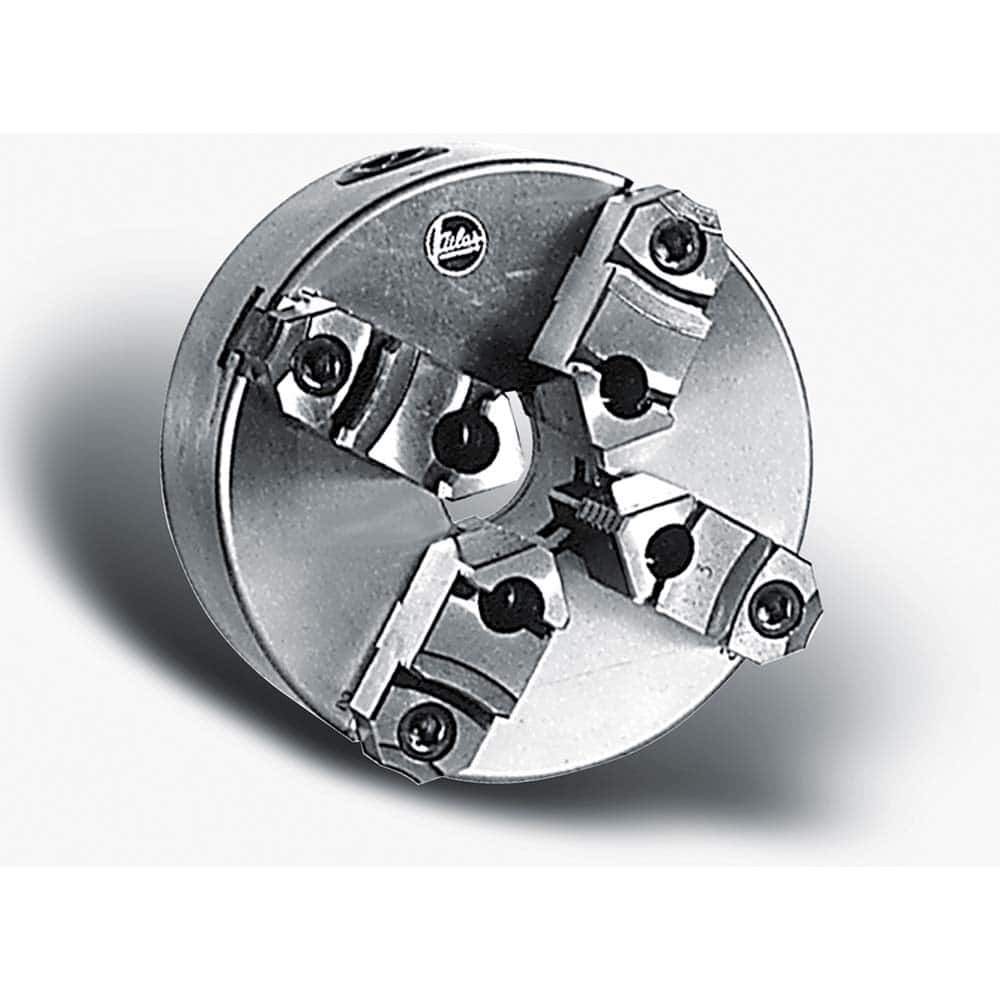

Atlas Workholding - Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 8 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 2.1600 ; Body Material: Forged Steel
Item #: 79854626
Brand: Atlas Workholding
Model #: 0873-2000
Product Specifications
Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 8 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 2.1600 ; Body Material: Forged Steel
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 8 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 2.1600 |
| Body Material | Forged Steel |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Decimal Inch) | 7.9000 |
| Series | 743 |
| Jaw Height (Decimal Inch) | 1.6900 |
| Adjustable | Yes |
| Jaw Type | Tongue & Groove Jaws |
| Radial Runout (Decimal Inch) | 0.0030 |
| TIR Repeatability (Decimal Inch) | 0.0010 |
| Body Length (Decimal Inch) | 2.9500 |
| Includes | Mounting Plate |
