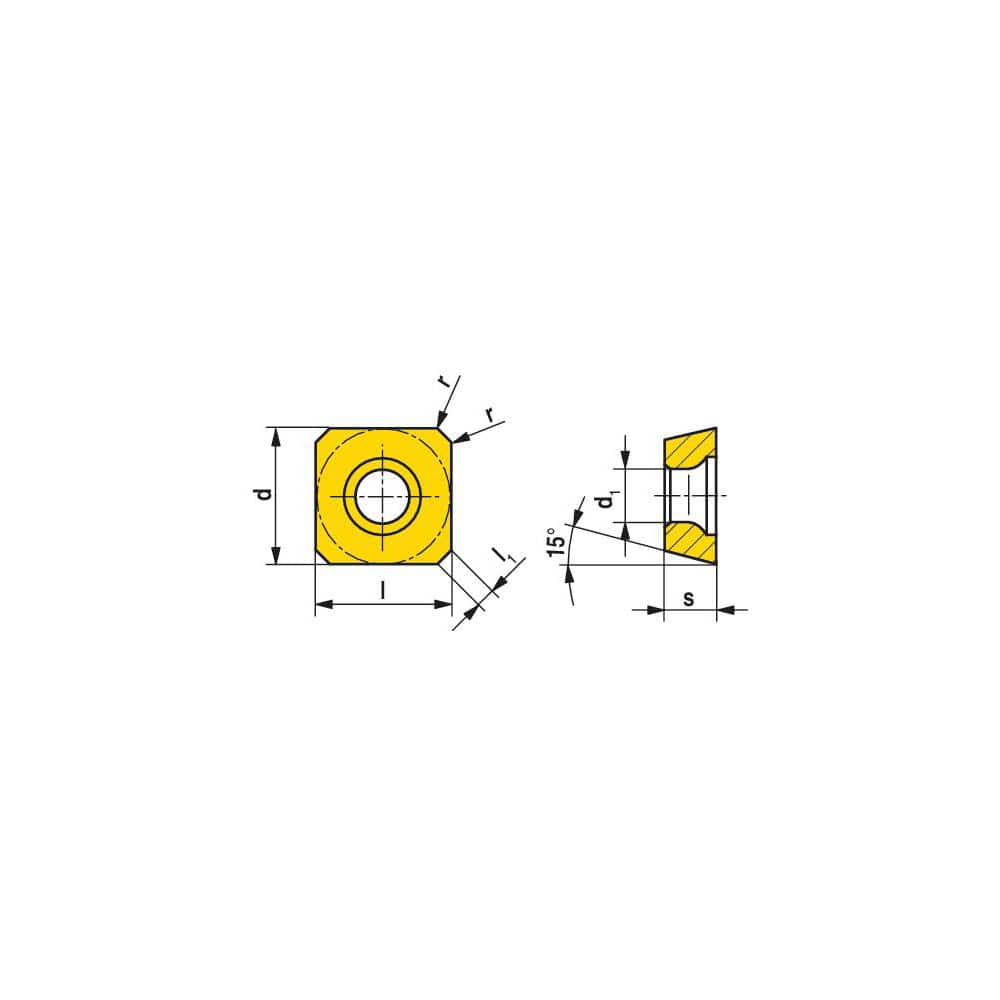

Milling Insert: SDKT 1907AESN-M50 CTCP220, CTCP220, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 79522769
Brand: Ceratizit
Model #: 5113122001
Product Specifications
| Insert Style | SDKT |
| Insert Size Code | 1907 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTCP220 |
| Inscribed Circle (Decimal Inch) | 0.7539 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | SDKT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (Decimal Inch) | 0.3770 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.7539 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | SDKT 1907AESN-M50 CTCP220 |
| Iso Code | SDKT 1907AESN-M50 CTCP220 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2894 |
