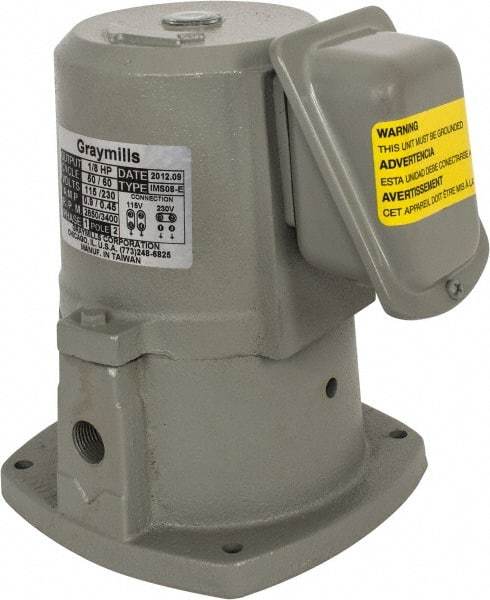

Graymills - 0.7/0.35 Amp, 115/230 Volt, 1/8 hp, 1 Phase, 3,450 RPM, Cast Iron Suction Machine Tool & Recirculating Pump - 9.5 GPM, 14 psi, 5-1/2" Long x 5-1/2" Mounting Flange Width, 6-7/8" Overall Height, Plastic Impeller, Sealed Motor
Item #: 79493870
Brand: Graymills
Model #: IMS08-E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pump Type | Suction |
| Horsepower | 1/8 |
| Phase | 1 |
| Voltage | 115/230 |
| GPM | 9.50 |
| Housing Material | Cast Iron |
| Shaft Material | Carbon steel |
| Head Pressure | 14.0 |
| Overall Height (Inch) | 6-7/8 |
| Amperage Rating | 0.70/0.35 |
| Mounting Flange Length (Inch) | 5-1/2 |
| Mounting Flange Width (Inch) | 5-1/2 |
| Motor Type | Sealed |
| RPM | 3450.000 |
| Impeller Material | Plastic |
| Seal Material | Viton |
