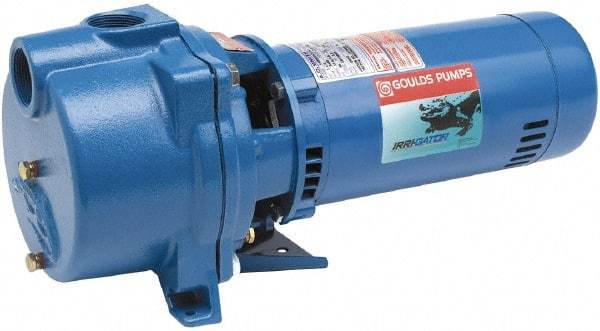

Goulds Pumps - 230 Volt, 17.2 Amp, 1 Phase, 3 HP, Self Priming Centrifugal Pump - 48J Frame, 1-1/2 Inch Inlet, 46 Head Pressure, 105 Max GPM, ODP Motor, Cast Iron Housing, Noryl Impeller, 107 Ft. Shut Off, Carbon Ceramic Mechanical Seal
Item #: 79248548
Brand: Goulds Pumps
Model #: GT30
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pump Type | Self-Priming Centrifugal |
| Input Voltage | 230 |
| Amperage Rating | 17.2 |
| Frequency Hz | 60 |
| Phase | 1 |
| Horsepower | 3 |
| Motor Type | ODP |
| Frame Type | 48J |
| End Connections | NPT |
| Inlet Size (Inch) | 1-1/2 |
| Thermal Overload Protection | Built in |
| Maximum Flow Rate (GPM) | 105.00 |
| Maximum Head Pressure | 46.0 |
| Shut Off Feet (Feet) | 107 |
| Housing Material | Cast Iron |
| Impeller Material | Noryl |
| Seal Material | Carbon-Ceramic |
| Seal Type | Mechanical |
| GPM @ 5 Feet of Head | 105.0 |
| GPM @ 10 Feet of Head | 100.0 |
| GPM @ 15 Feet of Head | 88.0 |
| GPM @ 20 Feet of Head | 76.00 |
| GPM @ 25 Feet of Head | 60 |
