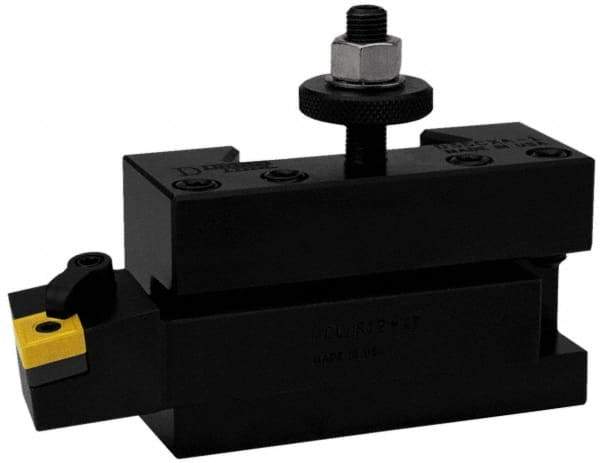

Dorian Tool - Series EA, #1 Turning & Facing Tool Post Holder - 25" & Up Lathe Swing, 4" OAH x 7" OAL, 1-1/2" Max Tool Cutting Size, 87.38mm Centerline Height
Item #: 79048021
Brand: Dorian Tool
Model #: 73310100850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | EA |
| Tool Post Holder Number | 1 |
| Tool Post Holder Type | Turning & Facing Holder |
| Lathe Swing (Inch) | 25 & Up |
| Through Coolant | No |
| Overall Height (mm) | 101.35 |
| Overall Height (Decimal Inch) | 3.9900 |
| Overall Length (mm) | 177.80 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Maximum Cutting Tool Size (mm) | 38.10 |
| Maximum Cutting Tool Size (Inch) | 1-1/2 |
| Centerline Height (mm) | 87.38 |
| Centerline Height (Decimal Inch) | 3.4400 |
| Dorian #1 - Dimension A (mm) | 25.40 |
| Dorian #1 - Dimension A (Inch) | 1 |
| Dorian #1 - Dimension A (Decimal Inch) | 1.0000 |
