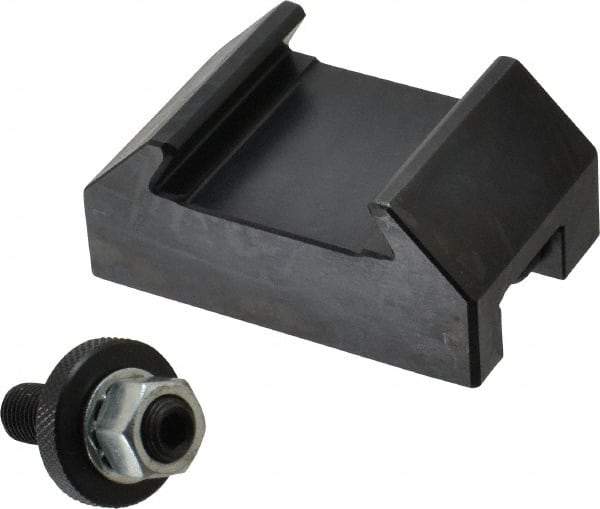

Dorian Tool - Series AXA, #1 Turning & Facing Tool Post Holder - 300mm & Under Lathe Swing, 1.74" OAH x 2-3/4" OAL, 3/4" Max Tool Cutting Size, 36.12mm Centerline Height
Item #: 79047015
Brand: Dorian Tool
Model #: 73310100100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | AXA |
| Tool Post Holder Number | 1 |
| Tool Post Holder Type | Turning & Facing Holder |
| Lathe Swing (mm) | 300 & Under |
| Lathe Swing (Inch) | 12 & Under |
| Through Coolant | No |
| Overall Height (mm) | 44.20 |
| Overall Height (Decimal Inch) | 1.7400 |
| Overall Length (mm) | 69.85 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Maximum Cutting Tool Size (mm) | 19.05 |
| Maximum Cutting Tool Size (Inch) | 3/4 |
| Centerline Height (mm) | 36.12 |
| Centerline Height (Decimal Inch) | 1.4220 |
| Dorian #1 - Dimension A (mm) | 9.53 |
| Dorian #1 - Dimension A (Inch) | 3/8 |
| Dorian #1 - Dimension A (Decimal Inch) | 0.3750 |
