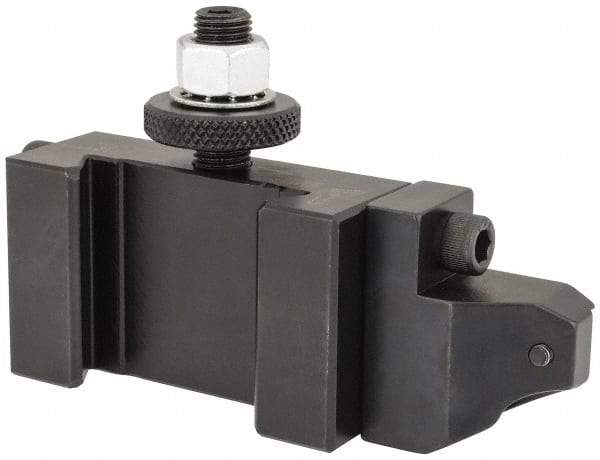

Dorian Tool - Series AXA, #881 Threading Tool Post Holder with External On-Edge Cartridge - 300mm & Under Lathe Swing, 1-1/2" OAH x 3.87" OAL, 7/8" Centerline Height
Item #: 79046850
Brand: Dorian Tool
Model #: 73310101132
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | AXA |
| Tool Post Holder Number | 881 |
| Tool Post Holder Type | Threading Tool Holder w/ External On-Edge Cartridge |
| Lathe Swing (mm) | 300 & Under |
| Lathe Swing (Inch) | 12 & Under |
| Through Coolant | No |
| Overall Height (Inch) | 1-1/2 |
| Overall Height (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 3.8690 |
| Insert Number | TNMC-32NV |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Thickness (mm) | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Centerline Height (mm) | 31.75 |
| Centerline Height (Inch) | 7/8 |
| Centerline Height (Decimal Inch) | 1.2500 |
