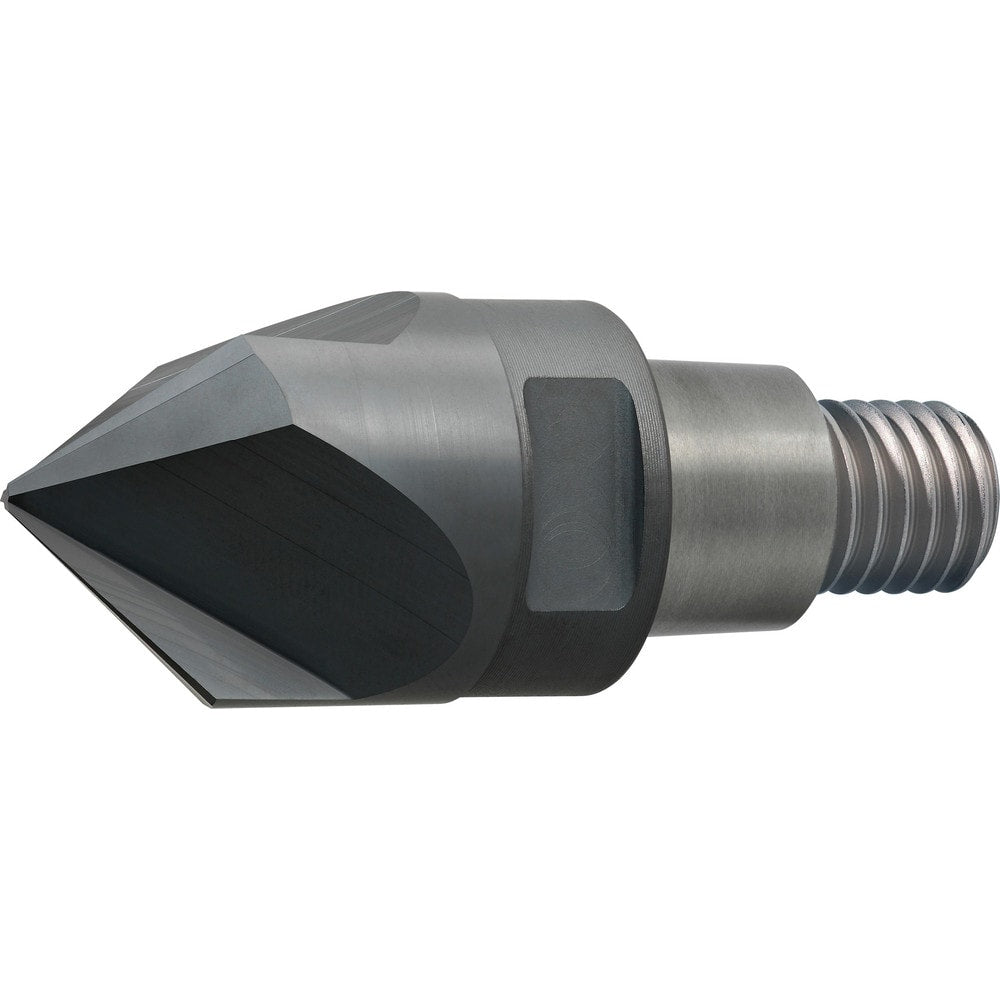

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 9.53; Mill Diameter (Inch): 3/8; Chamfer Width (mm): 4.000; Chamfer Width (Decimal Inch): 0.157; Chamfer Angle: 52.000; Length of Cut (mm): 4.0000; Number Of Flutes: 3
Item #: 76131820
Brand: Mitsubishi
Model #: 10528143
Product Specifications
| Mill Diameter (mm) | 9.53 |
| Mill Diameter (Inch) | 3/8 |
| Chamfer Width (mm) | 4.000 |
| Chamfer Width (Decimal Inch) | 0.157 |
| Chamfer Angle | 52.000 |
| Length of Cut (mm) | 4.0000 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 16.0000 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 0.6299 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Straight |
| Series | iMX |
| Helix Angle | 4.5 |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1570 |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
