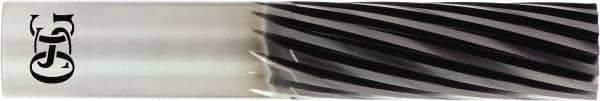

OSG - 31/64" Cutting Diam x 1-1/2" Length of Cut, 8 Flute, Spiral Router Bit - Diamond Coated, Solid Carbide, 3" OAL x 31/64" Shank Diam
Item #: 77943686
Brand: OSG
Model #: 26809716
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
End Mill router bits are used for bottom cutting and are designed to produce a smooth surface with a square corner
Diamond (PCD) coating is one of the hardest coatings. It is commonly used on concrete, fiberglass, plastic, stone, aluminum alloy and extremely difficult-to-machine materials.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 31/64 |
| Cutting Diameter (Decimal Inch) | 0.4844 |
| Number of Flutes | 8 |
| Flute Type | Spiral |
| Material Application | Composites |
| Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.5000 |
| Length of Cut (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 31/64 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3 |
| End Type | End Mill |
| Finish/Coating | Diamond |
| Coating | Diamond |
