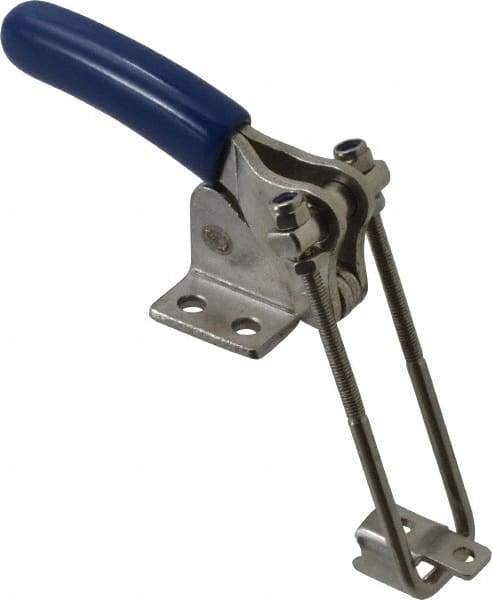

Gibraltar - 500 Lb Capacity, Vertical, U Hook, Flanged Base, Stainless Steel Pull Action Latch Clamp - 1.53" Drawing Movement, 3.35" OAL, Straight Handle
Item #: 77863710
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a latching hook that is 90 degrees to the mounting base. They are manufactured with holding capacities of up to 4,000 pounds.
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures.
| Product Specifications | |
|---|---|
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (Lb.) | 500 |
| Base Style | Flanged |
| Material | Stainless Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 3.3500 |
| Overall Height (Decimal Inch) | 2.0000 |
| Drawing Movement (Decimal Inch) | 1.530 |
| Handle Color | Blue |
| Base Length (Decimal Inch) | 1.0000 |
| Base Width (Decimal Inch) | 1.3800 |
| Mounting Hole Diameter (Decimal Inch) | 0.2000 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.8800 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.5000 |
| Bar Width (Decimal Inch) | 0.8100 |
| Bar Thickness (Decimal Inch) | 0.1400 |
| Base to Center of Bar (Decimal Inch) | 0.1900 |
| Includes | Latch Plate |
