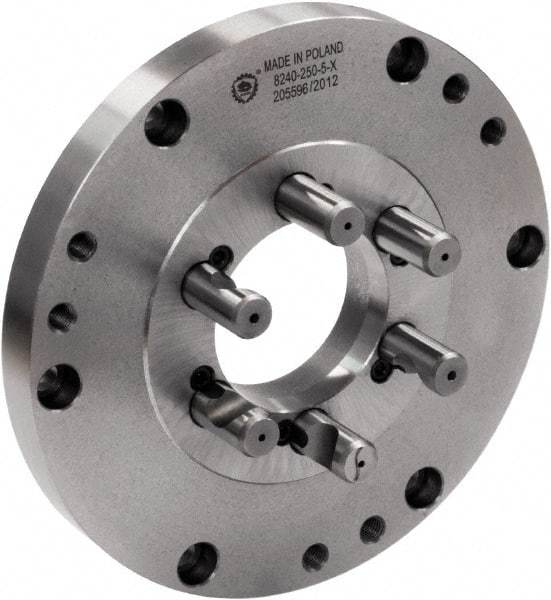

Bison - Adapter Back Plate for 12" Diam Self Centering Lathe Chucks - D1-8 Mount, 5.3853" Through Hole Diam, 12.4016" OD, 0.1772" Flange Height, Cast Iron
Item #: 77763563
Brand: Bison
Model #: 7-878-128F
Exact Tooling IR#: 04
Features and Benefits
Cast iron offers good vibration, resistance, good wear resistance and machinability. It is heavier and more economical than steel.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 12 |
| Spindle Nose Type | D Series |
| Mount | D1-8 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 5.3853 |
| Chuck Diameter Compatibility (Inch) | 12 |
| Chuck Diameter Compatibility (Decimal Inch) | 12.0000 |
| Outside Diameter (Decimal Inch) | 12.4016 |
| Flange Height (Decimal Inch) | 0.1772 |
| Material | Cast Iron |
