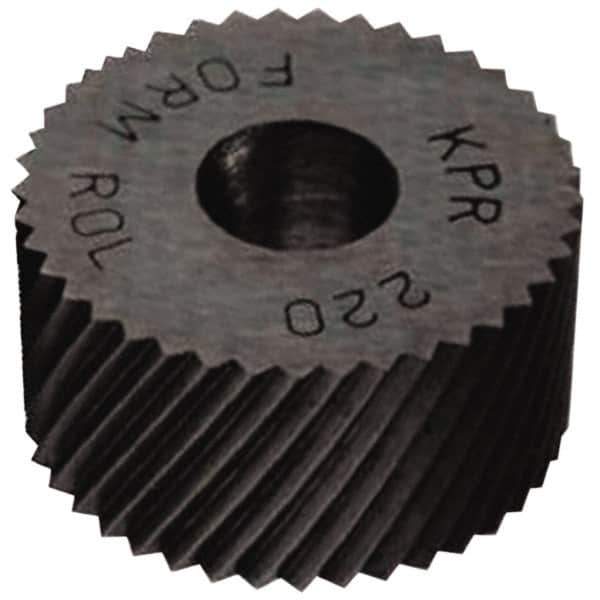

Made in USA - 1" Diam, 90° Tooth Angle, 25 TPI, Standard (Shape), Form Type High Speed Steel Right-Hand Diagonal Knurl Wheel - 3/8" Face Width, 5/16" Hole, Circular Pitch, 30° Helix, Bright Finish, Series OU
Item #: 77750016
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Right-hand diagonal wheels are used to produce left-hand diagonal patterns. On a two-wheel knurling tool, left and right hand diagonal wheels are used together to create a diamond design.
Form wheels produce textured patterns by forming an impression. This process displaces the material and increases the diameter of the workpiece.
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Knurl Shape | Standard |
| Pattern | Right-Hand Diagonal |
| Form or Cut Type | Form |
| Material | High Speed Steel |
| Knurl Diameter (Inch) | 1 |
| Face Width (Decimal Inch) | 0.3750 |
| Face Width (Inch) | 3/8 |
| Hole Diameter (Inch) | 5/16 |
| Pitch System | Circular |
| Pitch (TPI) | 25 |
| Knurl Series | OU |
| Included Tooth Angle | 90 |
| Finish/Coating | Bright |
| Helix Angle | 30 |
