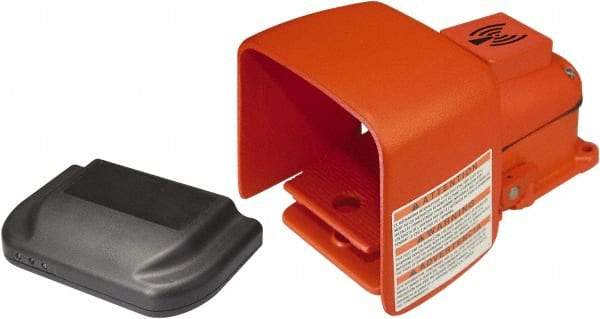

LINEMASTER - 1 Treadle, 10 Amp, 1/2 hp, Momentary (MO), DPDT, Wireless Foot Switch - IP68 (Transmitter) & IPX1 (Receiver), Aluminum & Cast Iron, 230.3mm Long x 153.31mm Wide x 154.53mm High
Item #: 77678035
Brand: LINEMASTER
Model #: SP-831-111101XA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Wireless |
| Operation Type | Momentary (MO) |
| Number of Treadles | 1 |
| Contact Form | DPDT |
| Switch Color | Black/Orange |
| Horsepower | 1/2 |
| Amperage | 10 |
| Body Material | Aluminum; Cast Iron |
| Ingress Protection Rating | IP68 (Transmitter); IPX1 (Receiver) |
| Overall Length (Decimal Inch) | 9.0670 |
| Overall Length (mm) | 230.30 |
| Overall Height (mm) | 154.53 |
| Overall Height (Decimal Inch) | 6.0840 |
| Overall Width (Decimal Inch) | 6.0360 |
| Overall Width (mm) | 153.31 |
| Standards Met | cULus to C22.2 No.14-05; EMC Directive EN60601-1-2; EN 60529; FCC ID #VPA-SP-831; UL 508; UL Listed |
