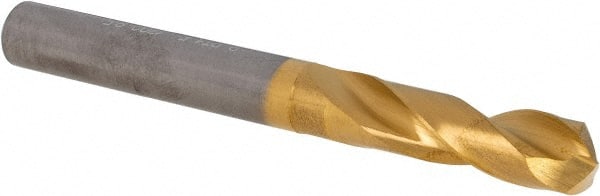

Screw Machine Length Drill Bit: 0.3346″ Dia, 140 °, Solid Carbide TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1702
Item #: 77438208
Brand: Guhring
Model #: 9017020085000
Product Specifications
| Drill Bit Size (mm) | 8.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SF |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3346 |
| Drill Bit Size (Decimal Inch) | 0.3346 |
| Drill Tip Finish/Coating | TiN |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.50 |
| Series | 1702 |
| Web Configuration | Tapered |
| Drill Length Type | Regular |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (Decimal Inch) | 1.4567 |
| Flute Length (mm) | 37.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
| Specification Number | DIN 6539 |
| Specification Designation | DIN |
| Material Grade | DK460UF |
