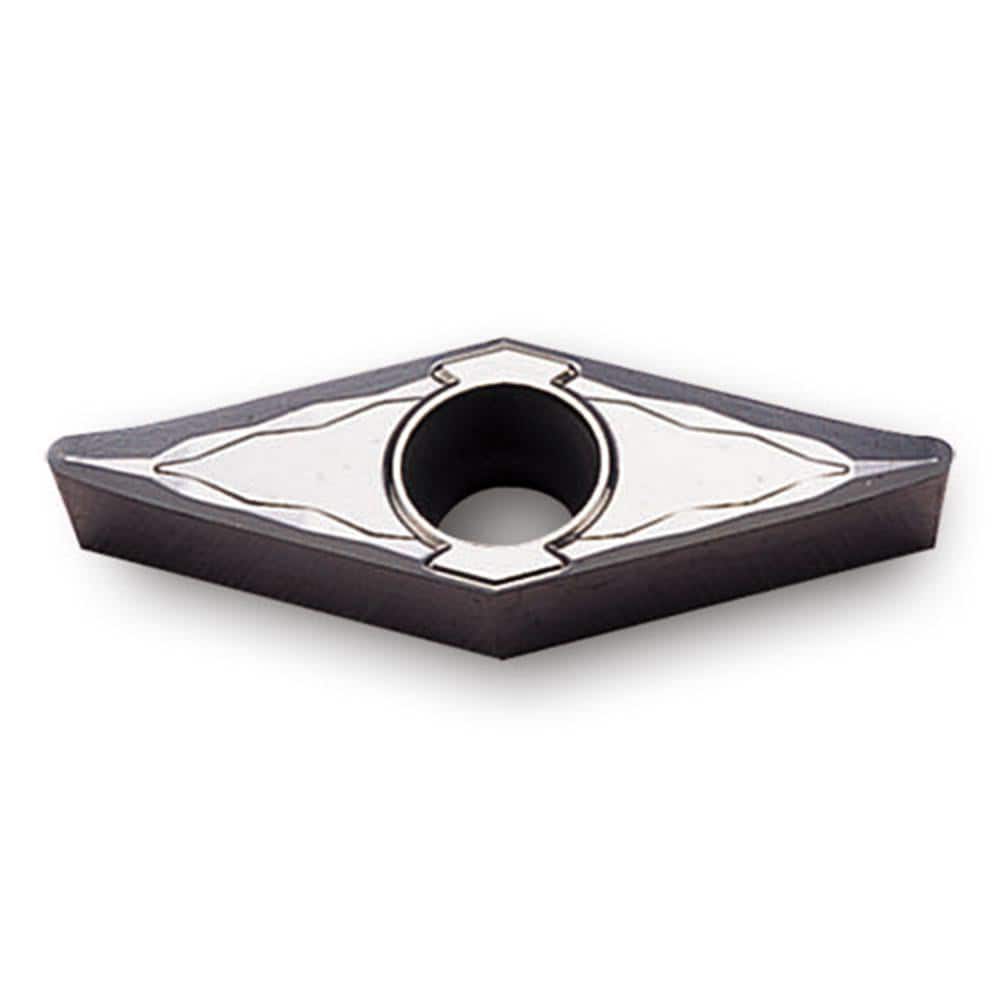

VCGT3305FL K10 Carbide Turning Insert 0.008″ Corner Radius, 3/16″ Thick, 35° Diamond
Item #: 77300648
Brand: Ingersoll Cutting Tools
Model #: 5515240
Product Specifications
| Insert Style | VCGT |
| Insert Shape Code | V |
| Insert Size Code | 330.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | K10 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6540 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Ansi Code | VCGT330.5FLK10 |
| Iso Code | VCGT160402FL K10 |
| Standards | ISO |
| Chip Breaker | FL |
| Coating/Finish | Uncoated |
