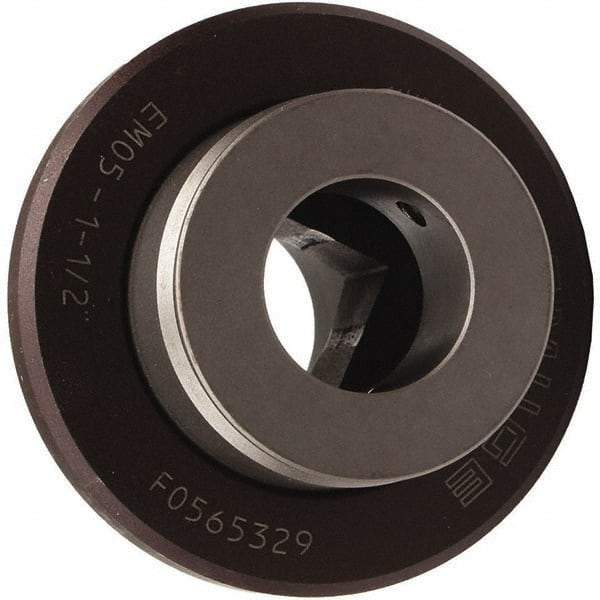

Emuge - 1.2598" Tap Shank Diam, 0.9449" Tap Square Size, #5 Tapping Adapter - 1.8898" Projection, 4.0945" Tap Depth, 4.3701" OAL, 2.3622" Shank OD, Through Coolant, Series EM05
Item #: 76849744
Brand: Emuge
Model #: F0565120
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 5 |
| Tap Shank Diameter (mm) | 32.00 |
| Tap Shank Diameter (Decimal Inch) | 1.2598 |
| Tap Square Size (mm) | 24.00 |
| Tap Square Size (Decimal Inch) | 0.9449 |
| Quick Change | Yes |
| Projection (mm) | 48.00 |
| Projection (Decimal Inch) | 1.8898 |
| Tap Depth (mm) | 104.00 |
| Tap Depth (Decimal Inch) | 4.0945 |
| Series | EM05 |
| Overall Length (mm) | 111.00 |
| Overall Length (Decimal Inch) | 4.3701 |
| Flange Diameter (mm) | 92.00 |
| Flange Diameter (Decimal Inch) | 3.6221 |
| Outside Shank Diameter (mm) | 60.00 |
| Outside Shank Diameter (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| PSC Code | 5136 |
