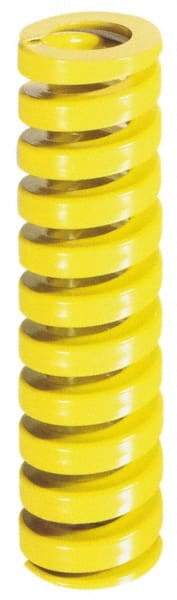

Dayton Lamina - 2" Hole Diam, 1" Rod Diam, 4-1/2" Free Length, Yellow Die Spring - 201 Lb Max Deflection, 1.12" Max Deflection, Extra Heavy Duty, Chromium Vanadium Steel
Item #: 76017458
Brand: Dayton Lamina
Model #: 9-3218-36
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (Lb.) | 201.00 |
| Maximum Deflection (Decimal Inch) | 1.1200 |
| Travel To Solid Load (Decimal Inch) | 1.3100 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
