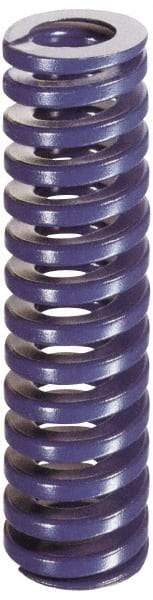

Dayton Lamina - 2" Hole Diam, 1" Rod Diam, 12" Free Length, Blue Die Spring - 21.5 Lb Max Deflection, 4.5" Max Deflection, Medium Duty, Chromium Vanadium Steel
Item #: 76013531
Brand: Dayton Lamina
Model #: 9-3248-21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 12 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 21.50 |
| Maximum Deflection (Decimal Inch) | 4.5000 |
| Travel To Solid Load (Decimal Inch) | 5.1300 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
