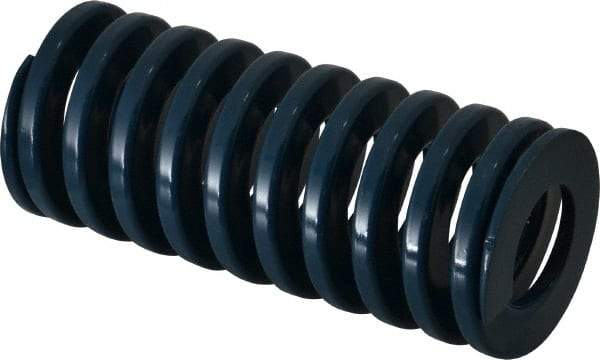

Dayton Lamina - 2" Hole Diam, 1" Rod Diam, 4-1/2" Free Length, Blue Die Spring - 61.2 Lb Max Deflection, 1.7" Max Deflection, Medium Duty, Chromium Vanadium Steel
Item #: 76013457
Brand: Dayton Lamina
Model #: 9-3218-21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 61.20 |
| Maximum Deflection (Decimal Inch) | 1.7000 |
| Travel To Solid Load (Decimal Inch) | 1.8500 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
