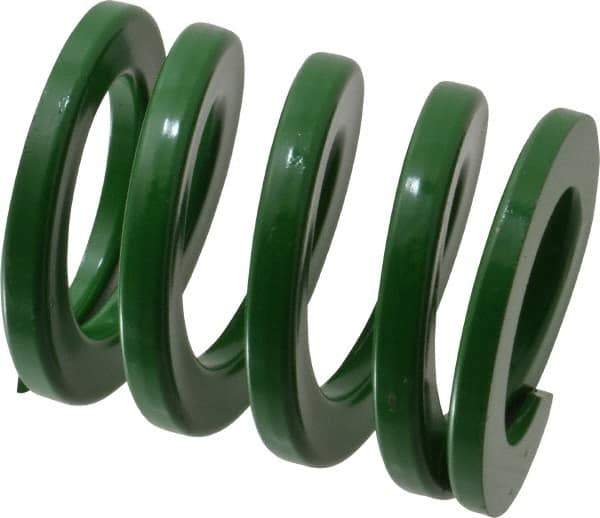

Dayton Lamina - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 3" Free Length, Green Die Spring - 110 Lb Max Deflection, 1.2" Max Deflection, Light Duty, Chromium Vanadium Steel
Item #: 76011618
Brand: Dayton Lamina
Model #: 9-4012-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 3 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 110.00 |
| Maximum Deflection (Decimal Inch) | 1.2000 |
| Travel To Solid Load (Decimal Inch) | 1.4300 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
