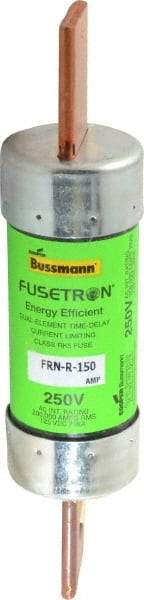

Cooper Bussmann - 125 VDC, 250 VAC, 150 Amp, Time Delay General Purpose Fuse - Bolt-on Mount, 7-1/8" OAL, 20 at DC, 200 (RMS) kA Rating, 1-9/16" Diam
Item #: 75784835
Brand: Cooper Bussmann
Model #: FRN-R-150
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | RK5 |
| Amperage | 150 |
| Voltage | 125 VDC; 250 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 181 |
| Overall Length (Inch) | 7-1/8 |
| Overall Length (Decimal Inch) | 7.1300 |
| Overall Diameter (mm) | 39.60 |
| Overall Diameter (Inch) | 1-9/16 |
| Overall Diameter (Decimal Inch) | 1.5600 |
| Number of Elements | 2 |
| Mounting Type | Bolt-on |
| Interrupting Rating (kA) | 20 @ DC; 200 (RMS) |
| Standards Met | CE Certified; CSA C22.2 No. 248.12 Class 1422-02 File 53787 Certified; UL Listed 248-12 Class RK5 Guide JDDZ File E4273 |
