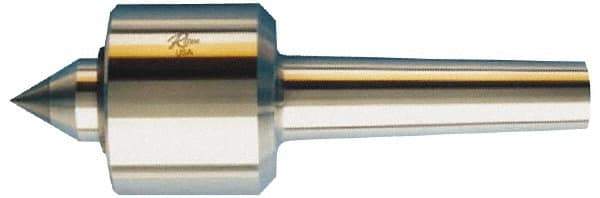

Riten - MT4 Taper Shank, 3-1/16" Head Diam Carbide Tipped Live Center - 5,000 Max RPM, 2-25/32" Head Length, 1-3/8" Point Diam, 1-13/16" Point Len, 1,000 Lb Max Workpc, 7/8" Tip Diam, Standard Point
Item #: 75543421
Brand: Riten
Model #: 14694
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1000.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-3/8 |
| Tip Diameter (Inch) | 7/8 |
| Point Length (Inch) | 1-13/16 |
| Point Length (Decimal Inch) | 1.8125 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (Inch) | 3-1/16 |
| Head Length (Inch) | 2-25/32 |
| Overall Length (Inch) | 2.7800 |
| Gage Line Clearance (Inch) | 3/8 |
| Bearing Type | Double Bearing |
| Maximum RPM | 5000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | Yes |
