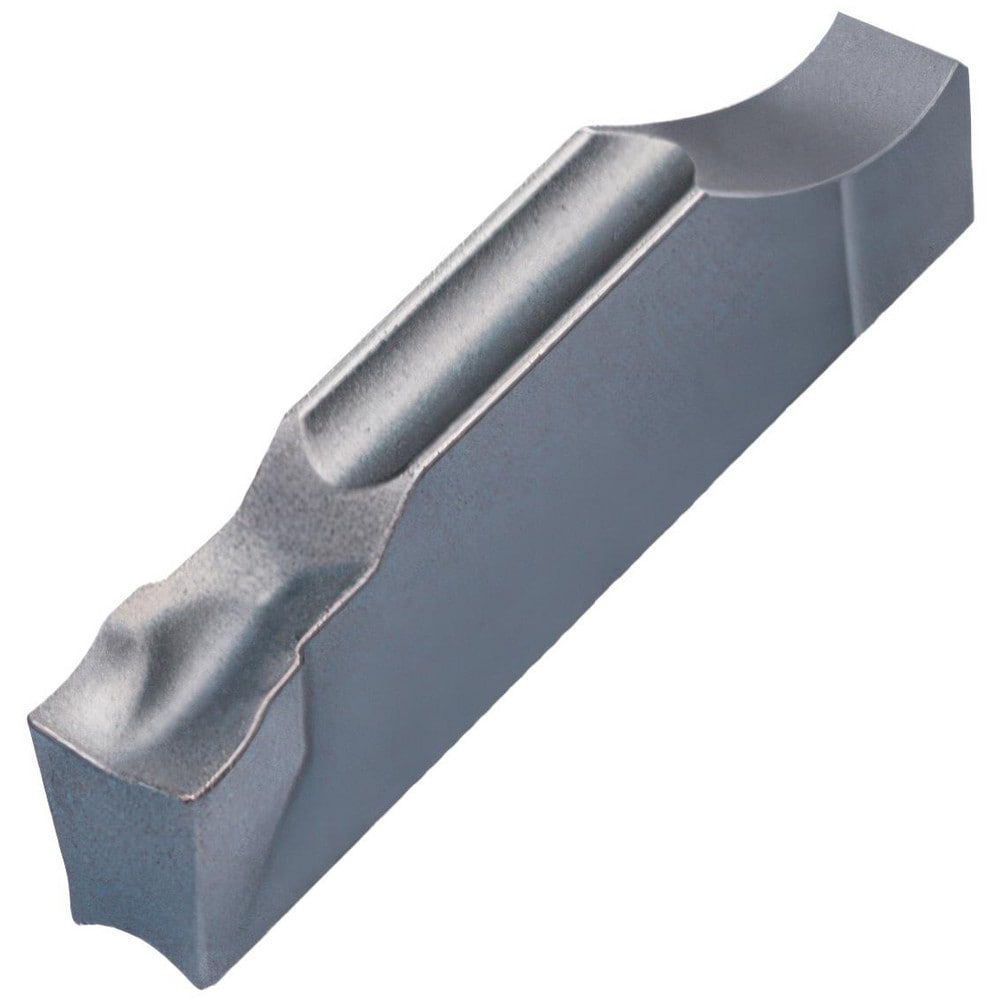

Cutoff Insert: TSJ3 K10
Item #: 60344561
Brand: Ingersoll Cutting Tools
Model #: 6000275
Product Specifications
| Insert Style | TSJ |
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | K10 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.000 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | J |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TSJ |
| Coating Process | Uncoated |
| Overall Length (Decimal Inch) | 0.7900 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | TSJ3 |
| Iso Code | TSJ3 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Insert Seat Size | 3 |
| Full Radius | No |
| Cutting Direction | Neutral |
| Insert Height (Decimal Inch) | 0.1850 |
| Coating Classification | Uncoated |
| Coating/Finish | Bright/Uncoated |
| Single Or Double End | Single |
| UNSPSC Code | 23242105 |
| Insert Style | TSJ |
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | K10 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.000 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | J |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TSJ |
| Coating Process | Uncoated |
| Overall Length (Decimal Inch) | 0.7900 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | TSJ3 |
| Iso Code | TSJ3 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Insert Seat Size | 3 |
| Full Radius | No |
| Cutting Direction | Neutral |
| Insert Height (Decimal Inch) | 0.1850 |
| Coating Classification | Uncoated |
| Coating/Finish | Bright/Uncoated |
| Single Or Double End | Single |
| UNSPSC Code | 23242105 |
| MSC Part # | 60344561 |
| Mfr Part # | 6000275 |
