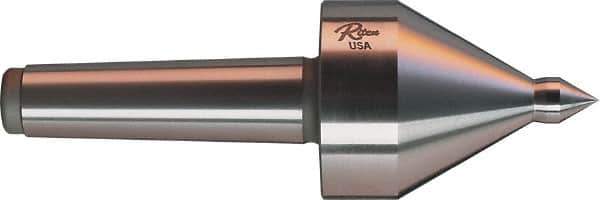

Riten - MT5 Taper Shank, 3-1/2" Head Diam 1,165 Lb Capacity Live Center - 3,500 Max RPM, 4-5/8" Head Length, 3/4" Point Diam, 1-1/8" Point Len, 1,165 Lb Max Workpc, 4-5/8" OAL, Pipe Nose Point
Item #: 75368241
Brand: Riten
Model #: 60355
Exact Tooling IR#: 04
Features and Benefits
Pipe nose points are used for for turning pipes, tubes, and parts with extra-large center holes.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1165.00 |
| Point Style | Pipe Nose |
| Point Diameter (Inch) | 3/4 |
| Point Diameter (Decimal Inch) | 0.7500 |
| Point Length (Inch) | 1-1/8 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 1165.00 |
| Head Diameter (Inch) | 3-1/2 |
| Head Length (Inch) | 4-5/8 |
| Overall Length (Inch) | 4-5/8 |
| Gage Line Diameter (Decimal Inch) | 1.7480 |
| Point to Gauge Line (Inch) | 4-5/8 |
| Gage Line Clearance (Inch) | 3/8 |
| Included Angle | 60.00 |
| Maximum RPM | 3500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
