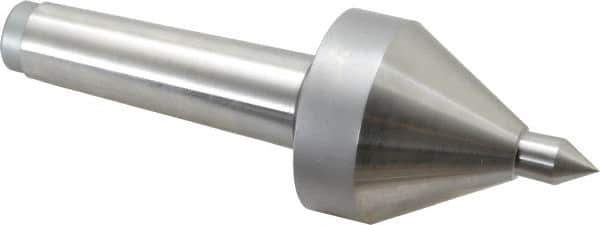

Riten - MT4 Taper Shank, 2-5/8" Head Diam 685 Lb Capacity Live Center - 4,000 Max RPM, 3-7/8" Head Length, 5/8" Point Diam, 15/16" Point Len, 685 Lb Max Workpc, 3-7/8" OAL, Pipe Nose Point
Item #: 75368225
Brand: Riten
Model #: 60264
Exact Tooling IR#: 04
Features and Benefits
Pipe nose points are used for for turning pipes, tubes, and parts with extra-large center holes.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 685.00 |
| Point Style | Pipe Nose |
| Point Diameter (Inch) | 5/8 |
| Point Diameter (Decimal Inch) | 0.6250 |
| Point Length (Inch) | 15/16 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 685.00 |
| Head Diameter (Inch) | 2-5/8 |
| Head Length (Inch) | 3-7/8 |
| Overall Length (Inch) | 3-7/8 |
| Gage Line Diameter (Decimal Inch) | 1.2310 |
| Point to Gauge Line (Inch) | 3-7/8 |
| Gage Line Clearance (Inch) | 3/8 |
| Included Angle | 60.00 |
| Maximum RPM | 4000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
