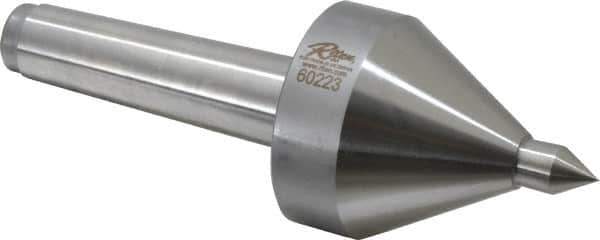

Riten - MT3 Taper Shank, 2-1/4" Head Diam 330 Lb Capacity Live Center - 5,000 Max RPM, 3-3/16" Head Length, 1/2" Point Diam, 3/4" Point Len, 330 Lb Max Workpc, 3-3/16" OAL, Pipe Nose Point
Item #: 75368209
Brand: Riten
Model #: 60223
Exact Tooling IR#: 04
Features and Benefits
Pipe nose points are used for for turning pipes, tubes, and parts with extra-large center holes.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 330.00 |
| Point Style | Pipe Nose |
| Point Diameter (Inch) | 1/2 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Point Length (Inch) | 3/4 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 330.00 |
| Head Diameter (Inch) | 2-1/4 |
| Head Length (Inch) | 3-3/16 |
| Overall Length (Inch) | 3-3/16 |
| Gage Line Diameter (Decimal Inch) | 0.9380 |
| Point to Gauge Line (Inch) | 3-3/16 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Maximum RPM | 5000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
