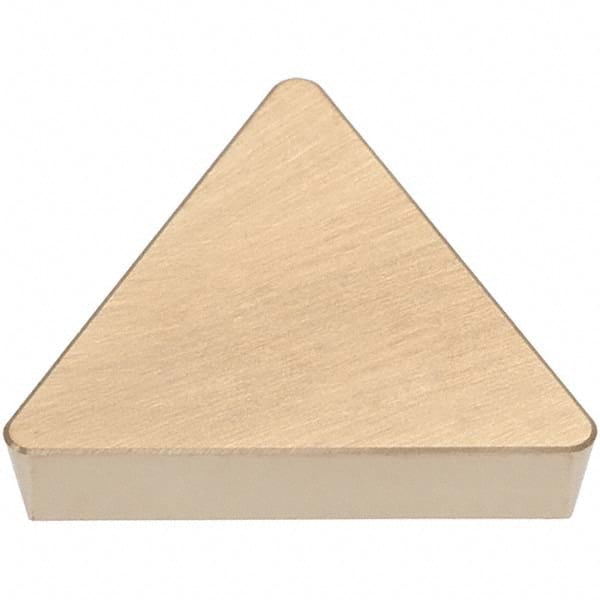

Turning Insert
Item #: 75177022
Brand: Tungaloy
Model #: 6808847
Product Specifications
| Insert Style | TPGN |
| Insert Shape Code | T |
| Insert Size Code | 160308 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Manufacturer Grade | GH110 |
| Maximum Depth of Cut (mm) | 2.00 |
| Inscribed Circle (mm) | 9.53 |
| Insert Thickness | 3.18 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11 |
| Series | TPGN |
| Rake | Positive |
| Insert Length (mm) | 16.50 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | K; N |
| Iso Code | TPGN160308 |
| Standards | ISO |
| Chip Breaker | N |
| Coating/Finish | Coated |
