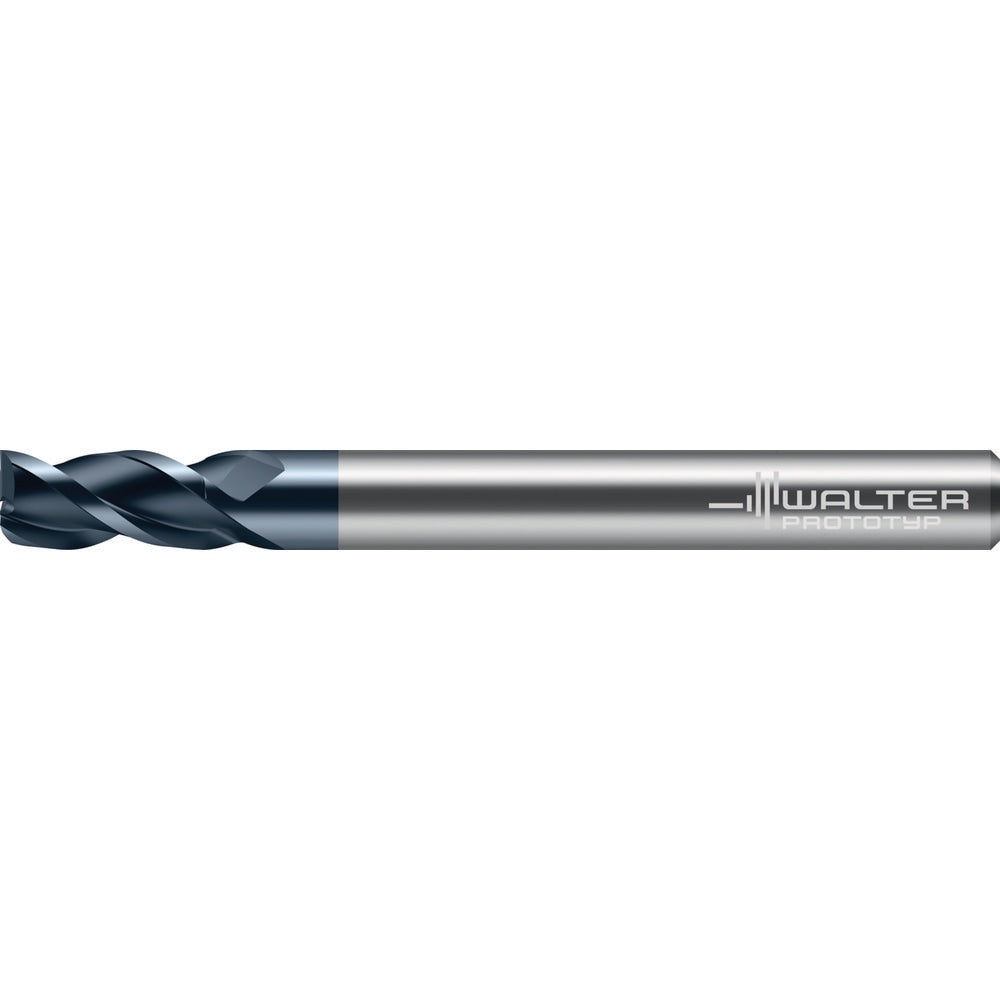

Square End Mill: 1/8" Dia, 1/2" LOC, 3 Flute, Solid Carbide
Item #: 07120207
Brand: Walter-Prototyp
Model #: 8414730
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | nACRo |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | S; K; M |
| Coating/Finish | nACRo |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Reach Length (Decimal Inch) | 0.5000 |
| Reach Length (mm) | 12.70 |
| Shank Diameter Tolerance | h6 |
| Series | MA230 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 23241614 |
