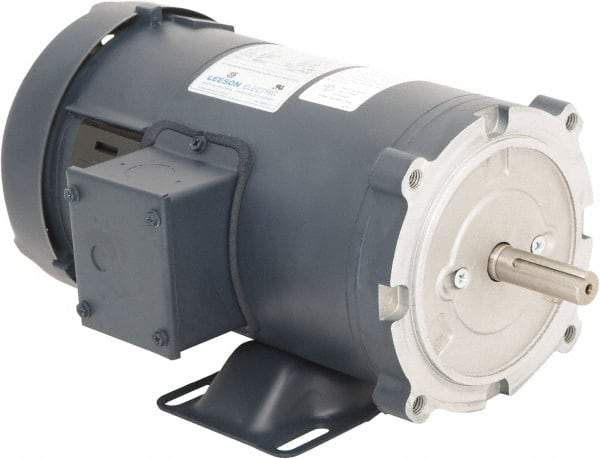

Leeson - 1 Max hp, 2,500 Max RPM, DC Electric AC DC Motor - 90 V Input, S56C Frame, 5/8" Shaft Diam, C-Face with Base Mount, TEFC Enclosure
Item #: 74871633
Brand: Leeson
Model #: 108020.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | DC |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 1 |
| Minimum Horsepower | 1 |
| Name Plate RPMs | 2500 |
| Phase | None |
| Input Voltage | 90 |
| Frame Size | S56C |
| Full Load Amperage | 10.0 |
| Mount Type | C-Face w/Base |
| Bearing Type | Ball Bearing |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | General Purpose |
| Maximum RPM | 2500 |
| Arm Volts DC | 90 |
| PSC Code | 6105 |
