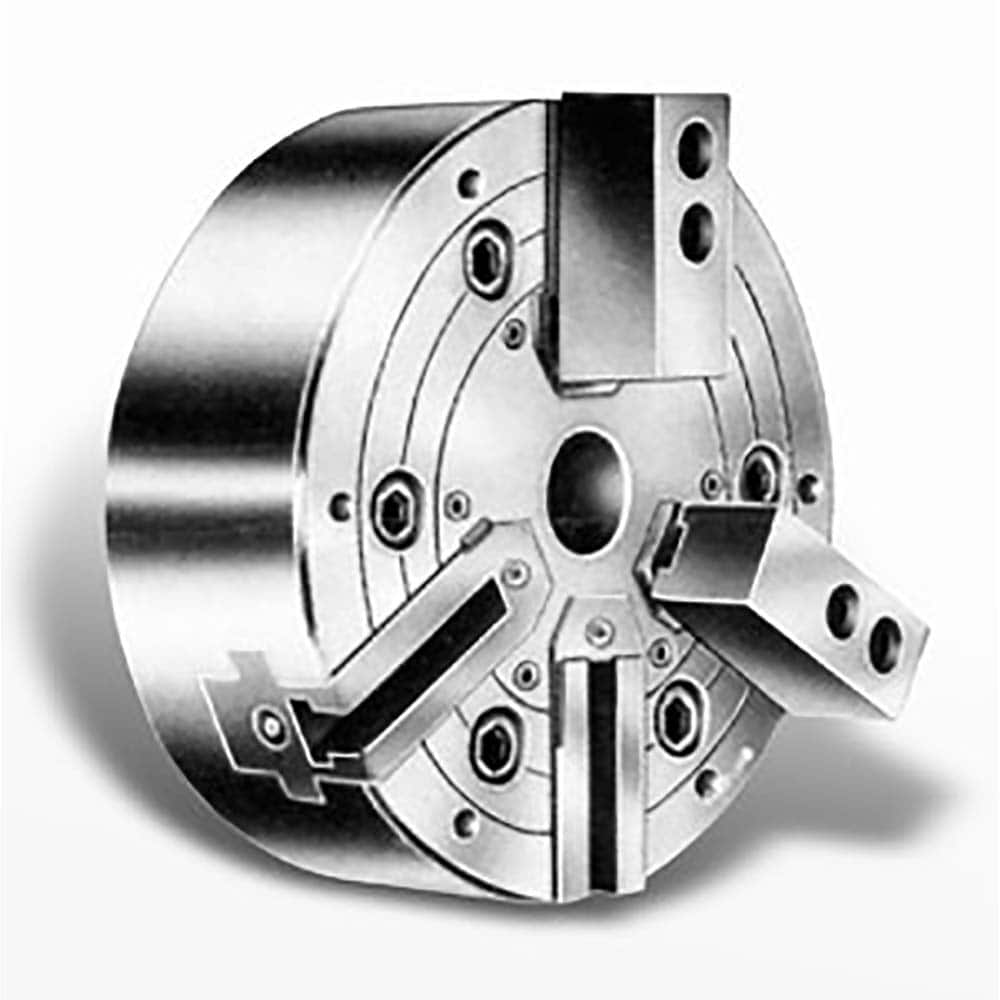

Atlas Workholding - 10" Diam A-8 Lathe Chuck
Item #: 74860412
Brand: Atlas Workholding
Model #: PAFH10-A8
Product Specifications
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Mount | A-8 |
| Through-Hole Diameter (Decimal Inch) | 1.5750 |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.1810 |
| Maximum Static Gripping Force (Lb.) | 13668.00 (3 Jaw); 9038.00 (2 Jaw) |
| Maximum Jaw Capacity (Decimal Inch) | 9.8400 |
| Jaw Stroke Diameter (Decimal Inch) | 0.7280 |
| Piston Stroke Length (Decimal Inch) | 0.9840 |
| Maximum Drawbar Pulling Force (Lb.) | 5070.00 (2 Jaw); 7716.00 (3 Jaw) |
| Maximum RPM | 3000 |
