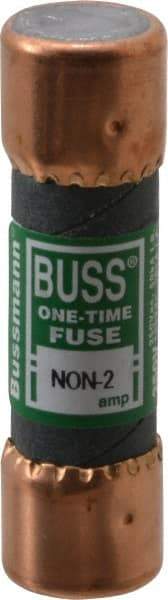

Cooper Bussmann - 125 VDC, 250 VAC, 2 Amp, Fast-Acting General Purpose Fuse - Fuse Holder Mount, 50.8mm OAL, 50 at AC/DC kA Rating, 9/16" Diam
Item #: 74701160
Brand: Cooper Bussmann
Model #: NON-2
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | K5 |
| Amperage | 2 |
| Voltage | 125 VDC; 250 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 50.80 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Diameter (mm) | 14.30 |
| Overall Diameter (Inch) | 9/16 |
| Overall Diameter (Decimal Inch) | 0.5600 |
| Mounting Type | Fuse Holder |
| Interrupting Rating (kA) | 50 @ AC/DC |
| Standards Met | CE Certified; CSA Class 1421-01 File 53787 Certified; UL 248-9; UL Guide JDDZ File E4274; UL Listed |
