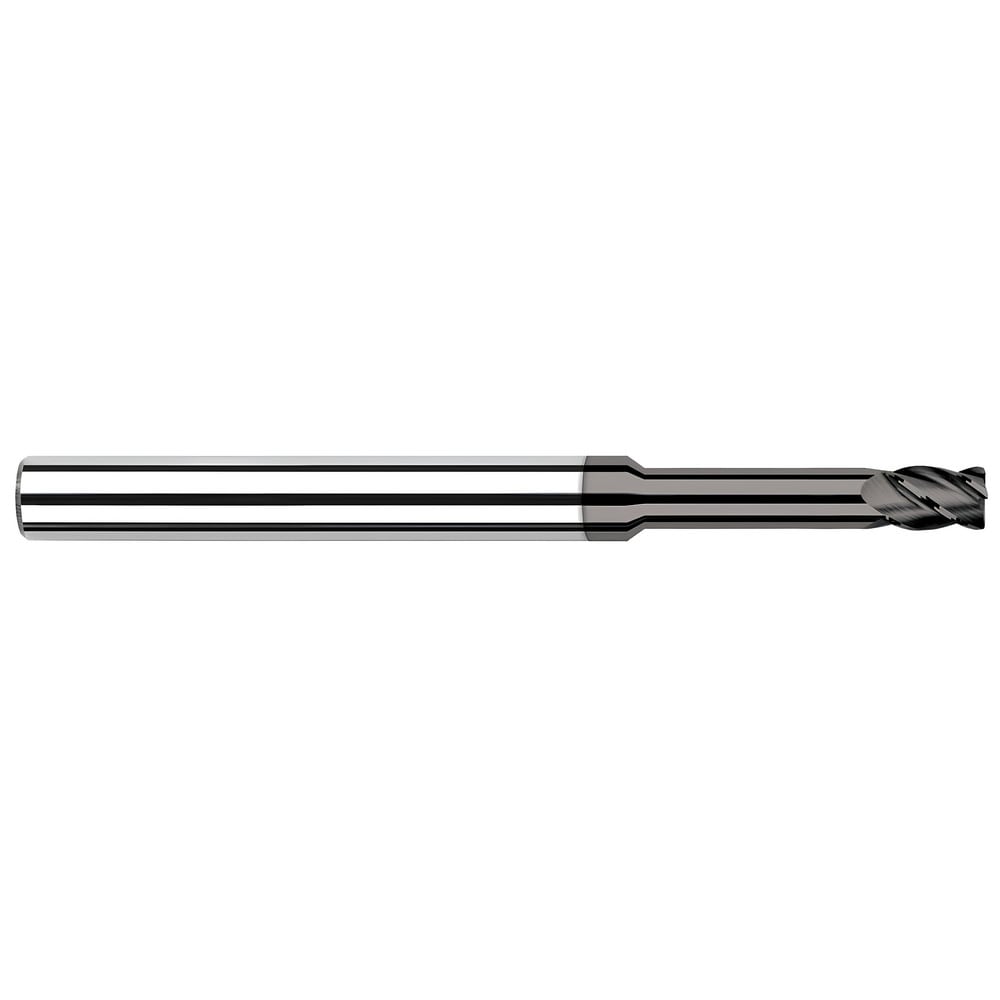

Corner Radius End Mill: 1/4" Dia, 3/8" LOC, 0.0300" Radius, 4 Flute, Solid Carbide
Item #: 57181430
Brand: Harvey Tool
Model #: 65616
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Diamond |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Extended |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 2.0000 |
| Reach Length (Inch) | 2 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0000/-0.0010 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Non-ISO; Graphite |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | O |
| Series | Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius - Long Reach; Material Specific End Mills; Stub Flute |
| Material Application | Composite; Graphite |
| Coating Classification | PVD |
| For Use With. | High Precision Toolholders |
