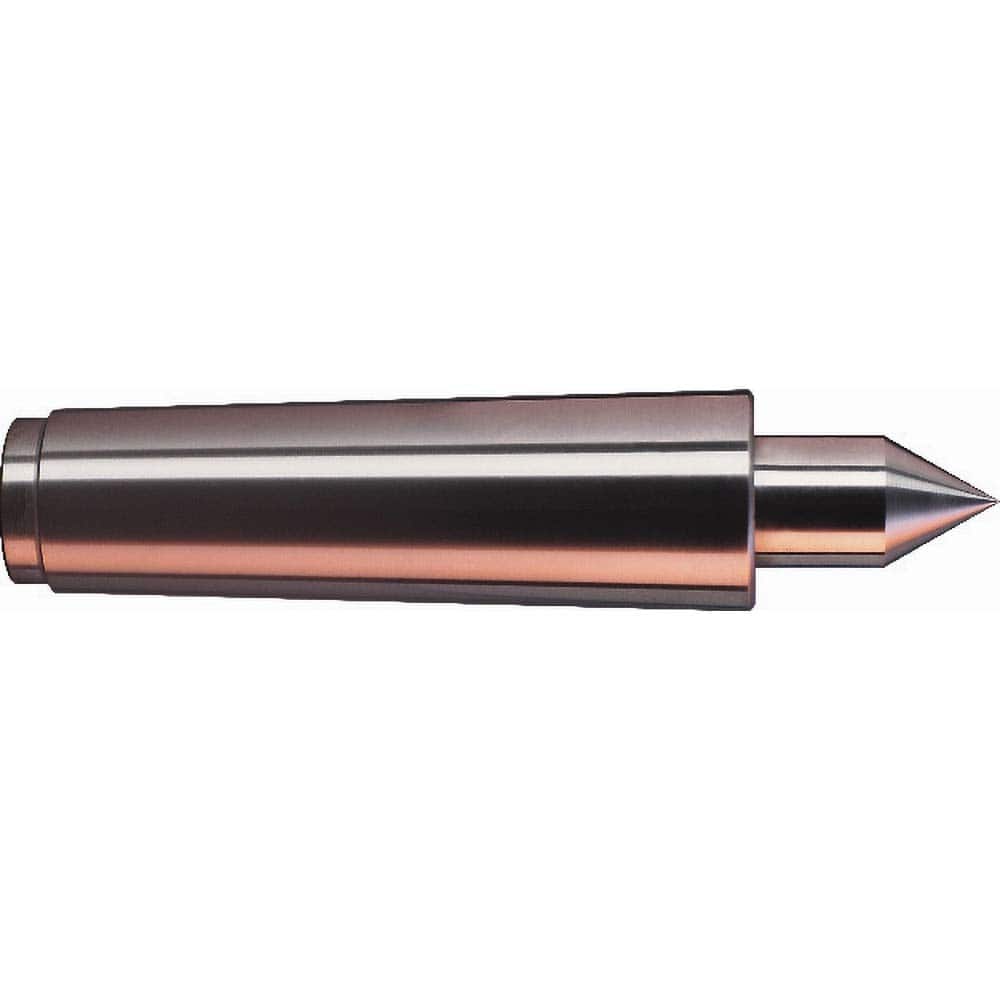

Riten - Live Centers; Shank Type: Straight Shank ; Shank Diameter (Inch): 1-1/16 ; Maximum Workpiece Weight (Lb.): 400.00 ; Point Style: Standard ; Point Diameter (Decimal Inch): 0.5580 ; Point Length (mm): 29.46
Item #: 74674201
Brand: Riten
Model #: 17304
Product Specifications
Live Centers; Shank Type: Straight Shank ; Shank Diameter (Inch): 1-1/16 ; Maximum Workpiece Weight (Lb.): 400.00 ; Point Style: Standard ; Point Diameter (Decimal Inch): 0.5580 ; Point Length (mm): 29.46
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/16 |
| Maximum Workpiece Weight (Lb.) | 400.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.5580 |
| Point Length (mm) | 29.46 |
| Point Length (Inch) | 1.16 |
| Point Length (Decimal Inch) | 1.1600 |
| Accuracy (mm) | 0.0025 |
| Accuracy (Decimal Inch) | 0.000100 |
| Thrust Load (Lb.) | 235.00 |
| Overall Length (mm) | 126 |
| Overall Length (Decimal Inch) | 4.95000 |
| Overall Length (Inch) | 4.95 |
| Point to Gauge Line (Decimal Inch) | 1.6900 |
| Point to Gauge Line (mm) | 42.93 |
| Point to Gauge Line (Inch) | 1.69 |
| Maximum RPM | 3000.000 |
| Material | Hardened Tool Steel |
