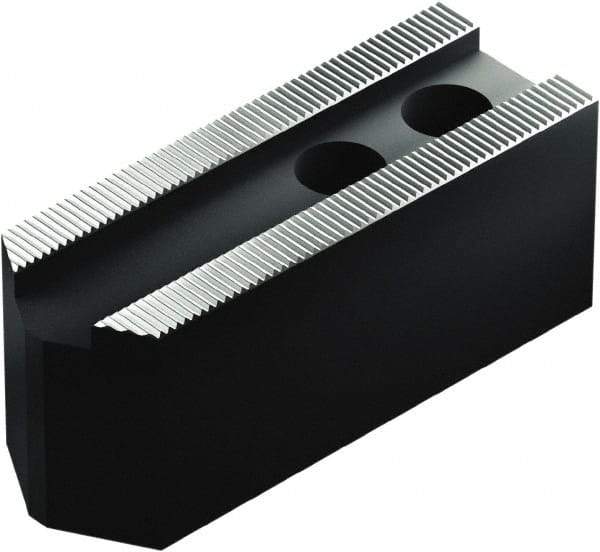

Schunk - 10" Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 30mm Btw Mount Hole Ctrs, 125mm Long, 40mm Wide, 100mm High, 16mm Groove, M12mm Fastener
Item #: 74592726
Brand: Schunk
Model #: 132608
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Maximum Compatible Chuck Diameter (mm) | 250.00 |
| Minimum Compatible Chuck Diameter (mm) | 250.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Overall Height (mm) | 100.00 |
| Overall Height (Decimal Inch) | 3.9370 |
| Groove Width (mm) | 16.00 |
| Groove Width (Decimal Inch) | 0.6299 |
| Distance Between Mount Hole Centers (mm) | 30.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1811 |
| Tongue Width (Decimal Inch) | 0.0000 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | M12 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 40.00 |
| Overall Length (mm) | 125.00 |
